Photovoltaic Assemblies

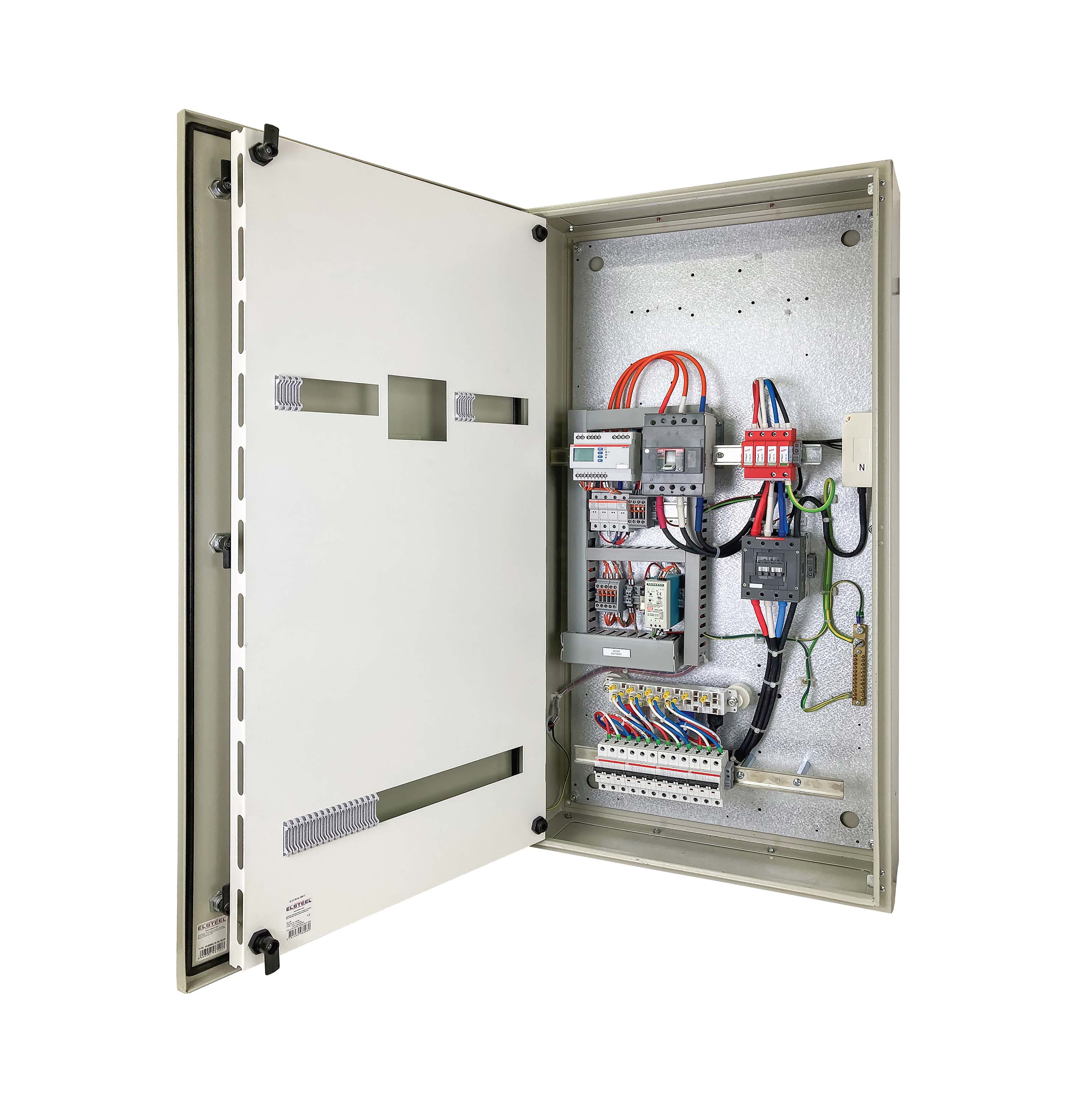

IPD GRID PROTECTION SYSTEM 230/400V 200A, 173KVA PVAGPS4P173AC18

Product Code: PVAGPS4P173AC18

The Grid Protection System is a 230/400V, 200A system with a power rating of 173kVA. It features an MCCB XT4H with a current rating of 250A and a breaking capacity of 70kA. The system has dimensions of 1200H x 600W x 300D mm and is IP65 rated, making it suitable for outdoor use. The system comes in a grey colour.

Technical Specifications

Remove Yes
Brand IPD
Colour Grey, RAL7035
Degree of Protection IP65
Dimensions (mm) 1200H x 600W x 300D
Material Full powder coated mild steel
Maximum Power (kVA) 173
No. of Poles 4
Rated Current (A) 200
Rated Voltage AC (V) 230/400
