Photovoltaic Assemblies


Product Code: PVAGPS4P173

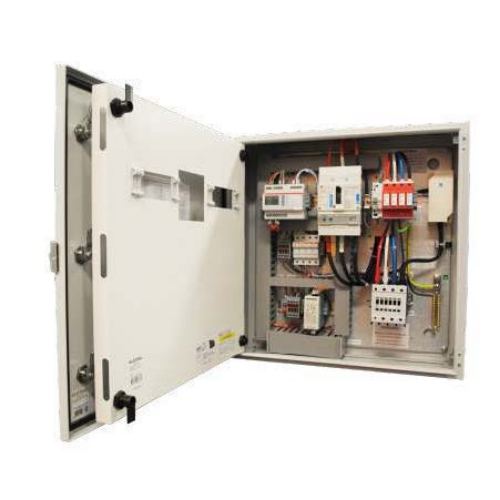

The Grid Protection Cubicle is a compact and efficient solution for safeguarding electrical grids. It is assembled with a power capacity of 173kVA and can handle currents up to 250A AC1 at 230/400VAC. The cubicle features a modular design, housed in a durable milsteel enclosure that is powder coated for added protection. With an IP65 rating, it is resistant to dust and water ingress. The enclosure measures 600mm in width, 1200mm in height, and 300mm in depth. It is equipped with top and bottom cable glands for easy installation and maintenance. Additionally, the cubicle includes surge protection capabilities to prevent damage from voltage spikes. For uninterrupted operation during power outages, it comes with a one-hour battery backup. This Grid Protection Cubicle provides reliable grid protection in a compact form factor, making it an ideal choice for various electrical applications.

Technical Specifications

Brand ABB
Colour Grey
Degree of Protection IP65
Dimensions (mm) 800H x 600W x 300D
Material Powder Coated Mild Steel
Maximum Current AC-1 (A) 250
Maximum Power (kVA) 173
Rated Voltage AC (V) 230/400
Surge Protection Yes
