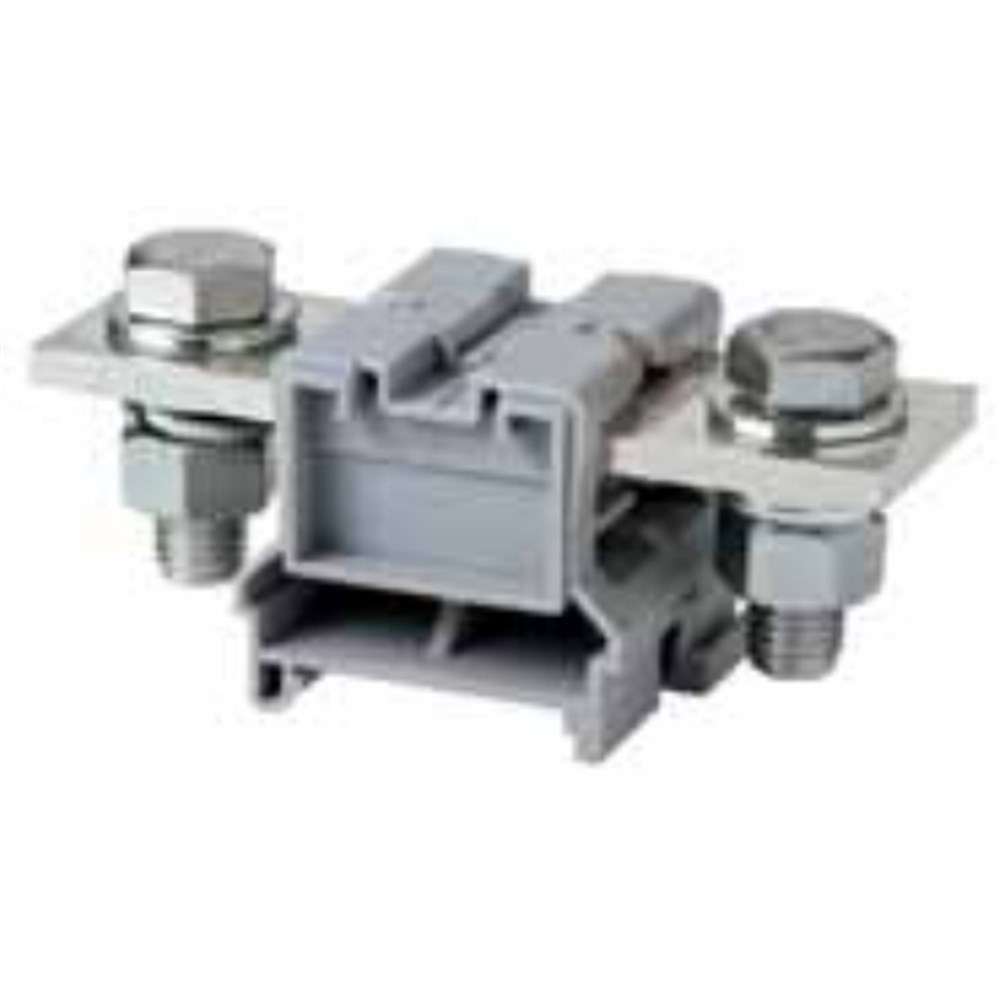

CONNECTWELL CBB185 POWER TERMINAL BLOCK LUG CONNECTION 16-185mm² 1000V/353A

Product Code: CBB185

This power terminal block features a lug connection and is designed for stranded conductors with a cross section ranging from 16mm² to 185mm². It has dimensions of 110mm in length, 48mm in width, and 47.3mm in height. The terminal block is coloured grey and can handle a voltage of up to 1000V and a current of up to 353A. It also has the capability for M12 size bolt mounting and can be used with both DIN 35 and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 16 - 185
Dimensions (mm) 110L x 48W x 47.3H
Mounting Type DIN Rail
Rated Current (A) 353
Rated Voltage (V) 1000
Tightening Torque (Nm) 14
