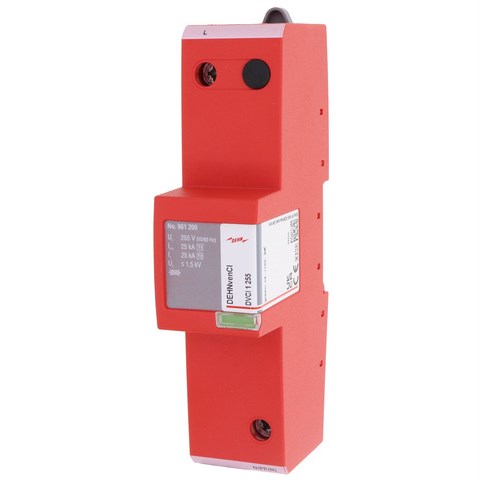

DEHN DVCI1255 Combined Lightning Current and Surge Arrester With Fuse 25kA 1-P 255VAC IP20

Product Code: DVCI1255

  • Surge protection for power supply systems
  • Rated voltage of 255 VAC
  • DIN rail mounting with IP20 protection
  • Handles lightning current up to 50 kArms
  • Compact size: 72mm W x 150mm H x 36mm D
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 72W x 150H x 36D
No. of Poles 1
Nominal Voltage AC (V) 230
Reference No. 961200
Suitable For Power Supply Systems
Weight (kg) 0.432
Enclosure Material Thermoplastic
Weight (g) 477.3
Mounting Method DIN Rail 35mm
Maximum Continuous Voltage AC (V) 255
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25
Product Type Combined Lightning Current and Surge Arrester With Fuse
Brand DEHN
Degree of Protection IP20
Depth 36 mm
Height 150 mm
Lightning Current Carrying Capability 50 kArms
Lightning Impulse Current 25 kA
Material Thermoplastic
Mounting Type DIN Rail
Number of Poles 1
Rated Voltage 255 VAC
Standards and Approvals EN 61643-11
Suitable For Use With Power Supply Systems
Weight 477.3 g
Width 72 mm
