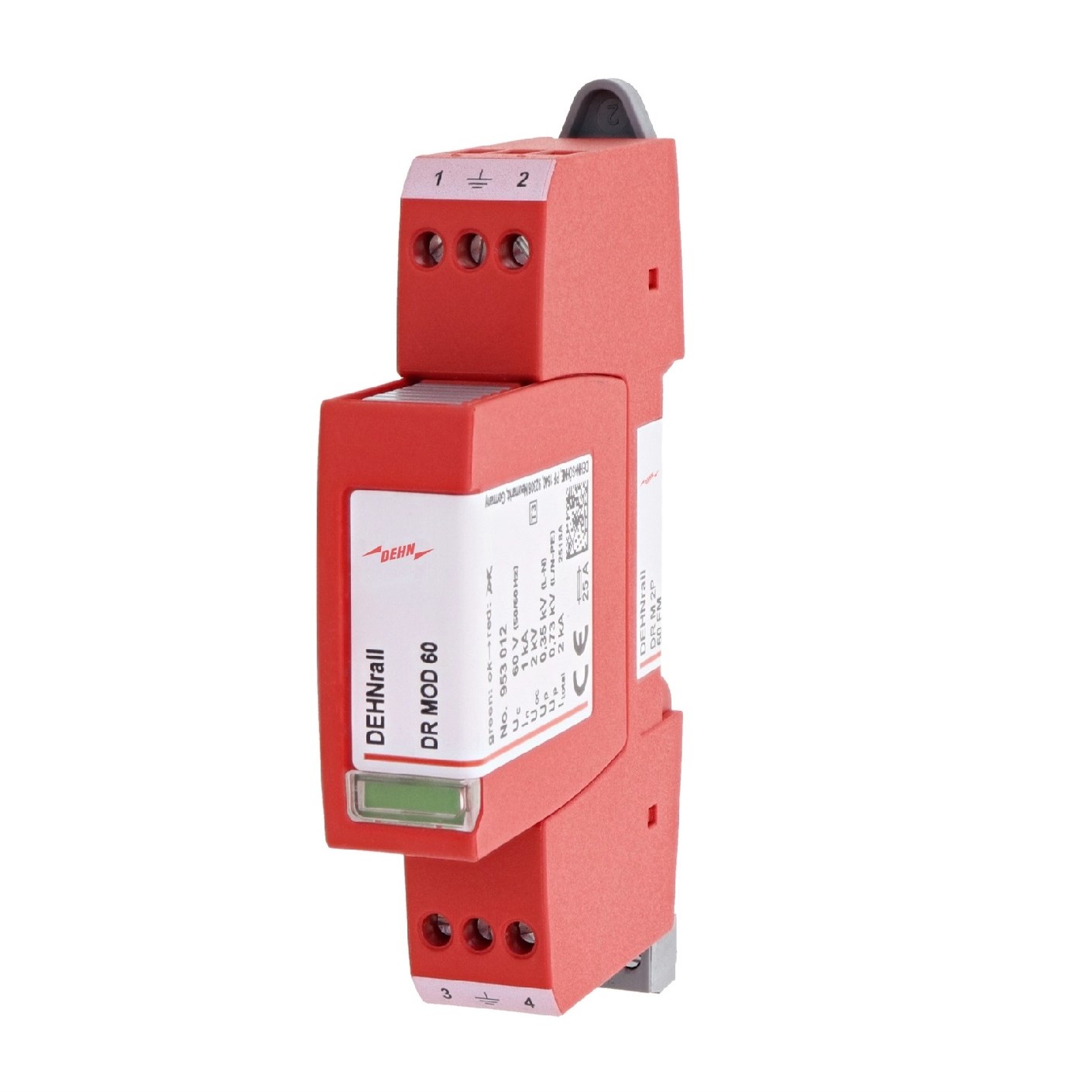

DEHN DRM2P60FM M-Surge Arrester 1kA 60VAC DIN Rail Mount IP20

Product Code: DRM2P60FM

  • Surge protection for 60 VAC systems
  • Compact DIN rail mounting
  • IP20 protection rating
  • Fast response time <= 25 ns
  • Handles up to 6 kA short circuit current
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Article No. 953207
Dimensions (mm) 0.08W x 0.11L x 0.02D
Maximum Continuous Operating Voltage MCOV AC (V) 60
Maximum Continuous Operating Voltage MCOV DC (V) 60
No. of Modules 1
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 1
Nominal Voltage AC (V) 48
Signal C/O Contact Yes
SPD Type Type 3
Total Discharge Current (8/20µs) - Itotal (kA) 2
Weight (kg) 0.1
Circuit Type Final Sub Circuit
Response Time (ns) &#8804; 25 (L-N)/&#8804; 100 (L/N-PE)
Operating State/Fault Indication Green/Red
Short-Circuit Withstand Capability - Iscc? (kArms) 6
Nominal Load Current AC - I? (A) 25
Product Type M-Surge Arrester
Brand DEHN
Degree of Protection IP20
Depth 0.02 mm
Length 0.11 mm
Mounting Type DIN Rail
Number of Modules 1
Rated Current 1 kA
Rated Short Circuit Current 6 kA
Rated Voltage 60 VAC
Response Time <= 25 ns, <= 100 ns (L/N-PE)
SPD Class Type 3
Weight 0.1 kg
Width 0.08 mm

Description

Two-pole DEHNrail modular surge arrester (type 3 according to EN 61643-1) consisting of a base part and plug-in protection module. High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination. For protecting the power supply circuit of industrial electronics equipment against transient surges in switchgear cabinets.
