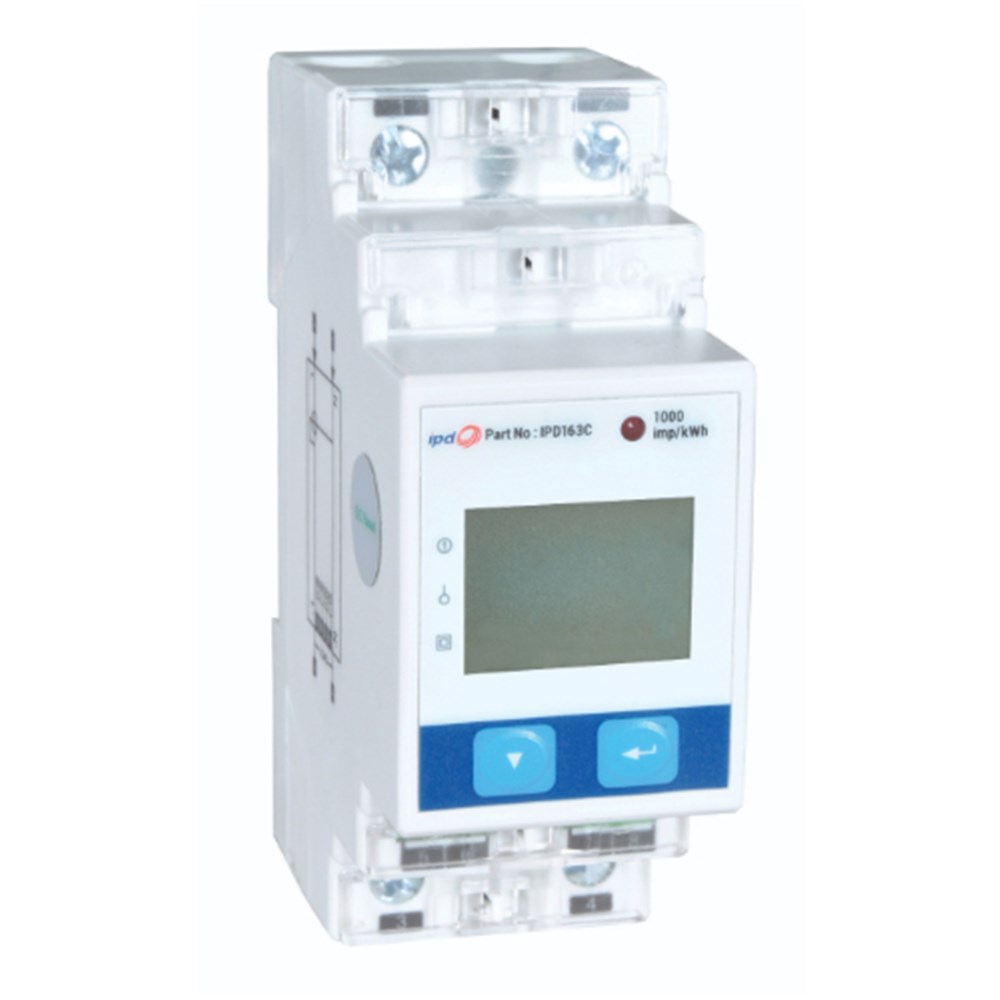

IPD IPD163C NMI DIGITAL METER 63A, 1 PHASE DIRECT CONNECT WITH RS485 MODBUS

Product Code: IPD163C

The NMI/Sub-billing digital meter is a 63A direct connect 240V, single phase meter. It features 1 digital pulse output and an RS485 port with Modbus RTU protocol. The meter has an accuracy class of 1 according to IEC62053-21 standards. With its 6 1/2 digit LCD display, the meter can show measurements up to 999999.9 kWh. It also offers multifunction measurements on the display. The meter is self-powered, eliminating the need for external control power. It has a solid-state energy pulse output and is two modules wide for easy DIN rail mounting.

Technical Specifications

Accuracy Class 1
Power Quality Measurements kWh and kvarh Imp/Tot/Net and kVAh
Brand IPD
Communication RS-485 port with Modbus RTU protocol
Connection Type Direct
Dimensions (mm) 36 X 65 X 90
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to +70
Rated Current (A) 63
Rated Voltage AC (V) 240
