Specifications

Dimensions (mm)	108W x 116H x 78D
No. of Phases	2
Operational Temperature Range (°C)	-40 to 70
Response Time (ns)	Instantaneous
Enclosure Material	Metal
Maximum Load Current - I? (A)	32
Weight (g)	350
Maximum Continuous Voltage AC (V)	275
Maximum Discharge Current (8/20µs) (kA)	100

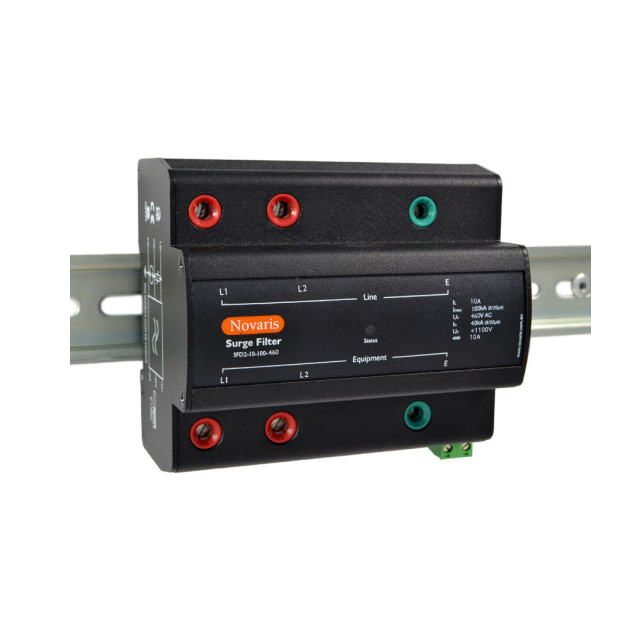

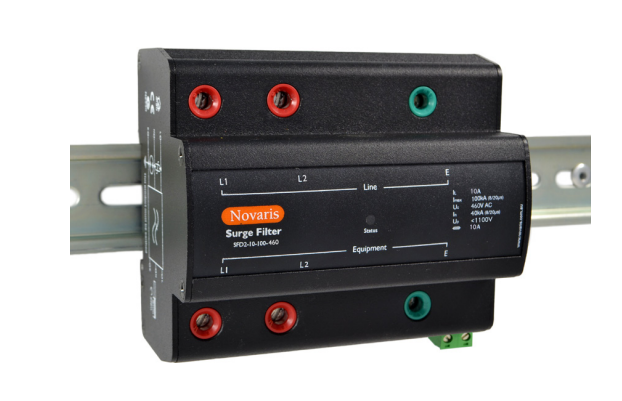

Product Type	Surge Filter With Floating Earth
Brand	NOVARIS
Connection Type	Series
Contact Configuration	SPDT
Degree of Protection	IP20
Depth	95 mm
Display Type	LED Power and Thermal Failure
Fuse Rating	32 A
Height	69 mm
Humidity	5-95%
Lightning Impulse Current	12.5 kA
Material	Aluminium
Modes of Protection	L-L, L-PE
Mounting Type	TS35 DIN Rail
Operational Temperature	-40 to 70 deg C
Phase	2
Rated Current	32 A
Rated Short Circuit Current	25 kA
Rated Voltage	230 VAC
Response Time	<100 ns (L-PE)
Standards and Approvals	IEC 61643-11:2011, AS/NZS 1768:2007, UL 1449 3rd Edition, EEE 62.41.2:2002
Tightening Torque	0.5 N-m, 2 N-m
Voltage Protection Level	<600V (L-L)
Weight	850 g
Width	120 mm
