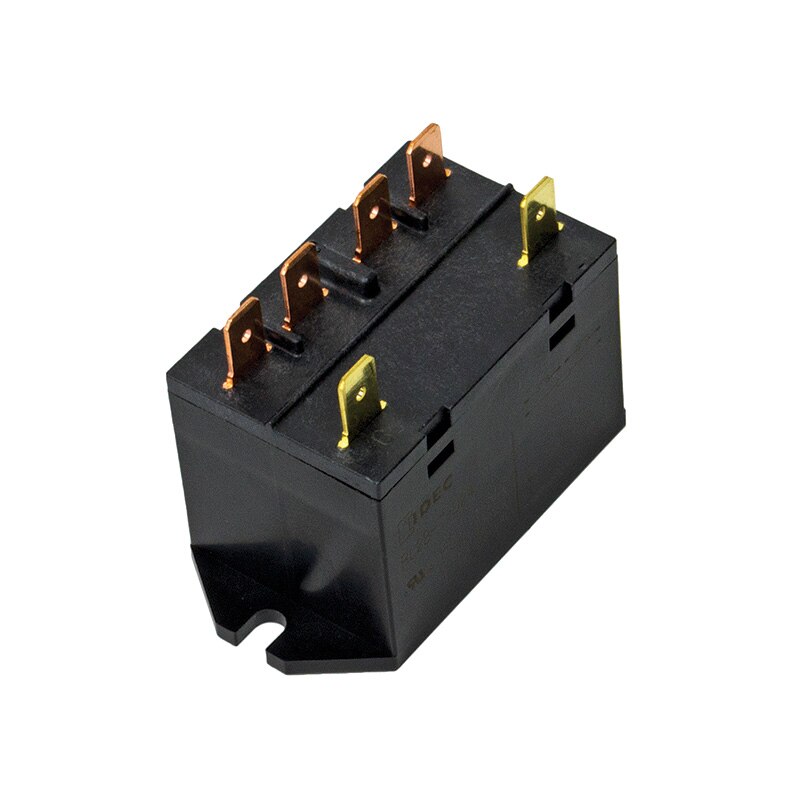

IDEC 2-POLE TAB TERMINAL FLANGE 24V DC RELAY RL2B-T-D24

Product Code: RL2B-T-D24

The IDEC RL2B-T-D24 is a robust 24V DC relay designed for efficient operation in motor, lighting, and heater load applications. It features double make contacts for reliable connectivity and performance. This 2-pole tab terminal flange relay is also RoHS compliant, ensuring adherence to environmental standards. Ideal for industrial use, it offers durability and consistent operation within its intended electrical load ranges.

Technical Specifications

Brand IDEC
Operating Time 30ms Max
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Quick Connect Terminal
Coil Voltage DC (V) 24
Contact Material Ag Alloy
Contacts 2X (DPST, Double Make)
Degree of Protection IP40
Dimensions (mm) 33W x 67H X 35D
Maximum Switching Current (A) 25
Minimum Mechanical Life 1,000,000
Mounting Type Flange Mount
No. of Poles 2
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 55
Power Consumption (W) 1.9
Weight (g) 90-135
