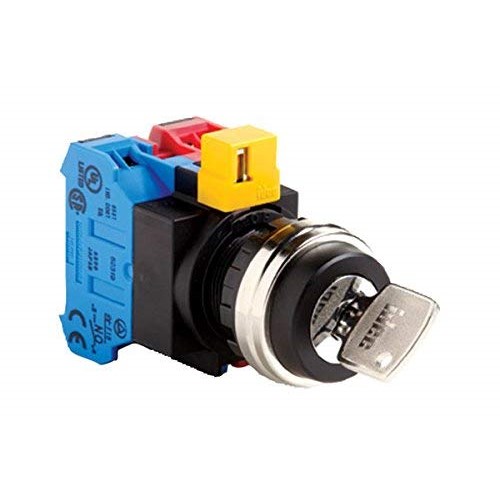

IDEC HW4K-2AF10 Selector Switch 2Position 1NO Maintained Knob Key Metal Screw Terminal

Product Code: HW4K-2AF10

  • Key-operated maintained switch for secure control
  • Suitable for 10 A, 50/60 Hz applications
  • Robust metal bezel with IP20/IP65 protection
  • Fits standard 22 mm mounting holes
  • Certified by CE, CSA, and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Normally-open Contacts 1
Terminal Shape Screw Terminal
Product Type Selector Switch
Brand IDEC
Series HW
Actuator Type Key
Bezel Material Metal
Contact Configuration 1NO
Degree of Protection IP20, IP65
Function Maintained
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW4K-2AF10 is a robust 2-position key selector switch featuring a durable metal bezel and maintained operation. It includes 1 Normally Open (NO) contact and allows for key removal in all positions, ensuring flexible control and enhanced security. Designed for 22mm mounting, this switch from the HW series is ideal for industrial applications where reliable performance and longevity are essential.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
