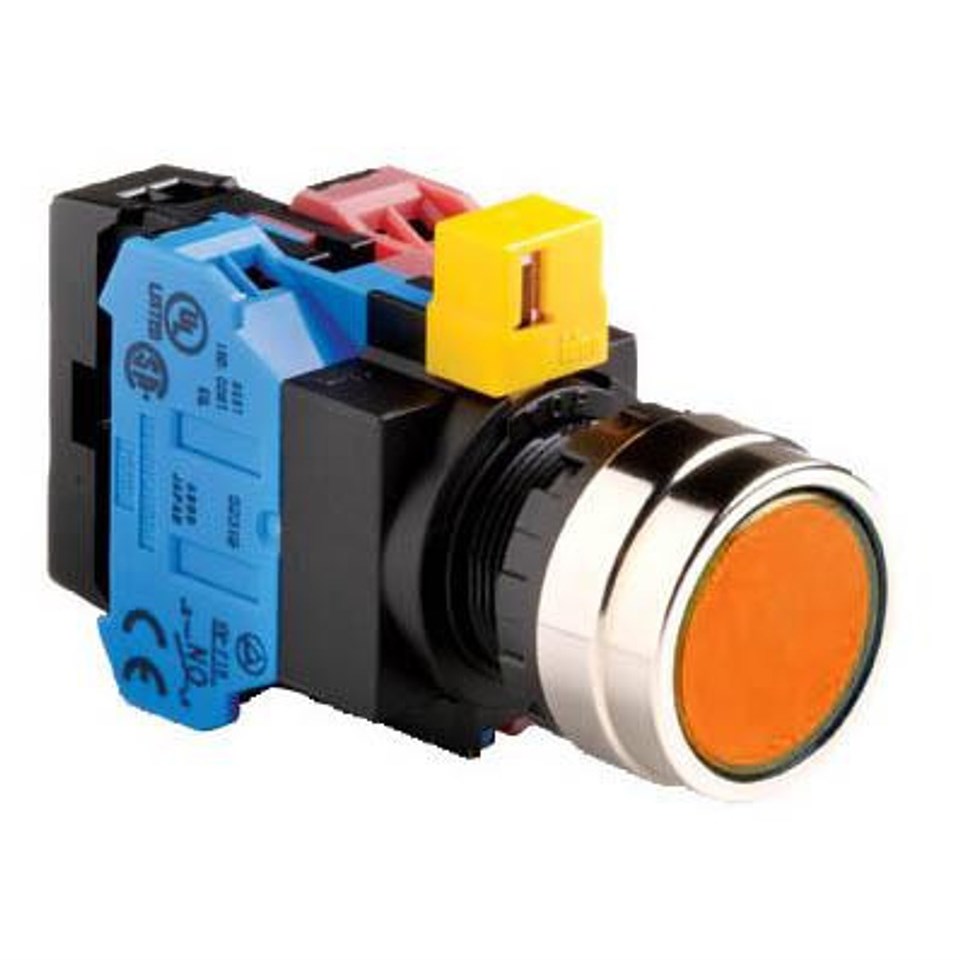

IDECHW4L-M1F11QD-A24 Illuminated Pushbutton 22mm Flush Momentary Amber 24VAC/DC 1NO+1NC

Product Code: HW4L-M1F11QD-A24

  • Illuminated LED pushbutton with amber lamp
  • Flush actuator with metal round bezel
  • IP65 front protection, IP20 terminal safety
  • 1NO+1NC contacts, silver material
  • UL, CE, CSA certified for compliance
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Operational Voltage (V) 24
No. of Normally-open Contacts 1
No. of Normally-closed Contacts 1
Terminal Shape Screw Terminal
Product Type Pushbutton
Brand IDEC
Series HW
Actuator Type Flush
Bezel Material Metal
Bezel Shape Round
Contact Configuration 1NO+1NC
Contact Material Silver
Cutout Size 22 mm
Degree of Protection IP65 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Illumination Circuit Full Voltage
Illumination Colour Amber
Insulation Resistance 100 MOhm
Lamp Colour Amber
Lamp Type LED
Mechanical Life 5 million Operations
Operational Temperature -25 to 60 deg C
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals UL listed, CE marked, ULKA approved, CSA certified
Terminal Type Screw

Description

The IDEC HW4L-M1F11QD-A24 is a 22mm illuminated pushbutton featuring a durable metal bezel and a flush, momentary amber operator. Designed for clear signaling with its 24V LED illumination, this pushbutton provides one Normally Open (NO) and one Normally Closed (NC) contact configuration for versatile control in various applications. Its extended design ensures easy operation and quick identification in control panels.
