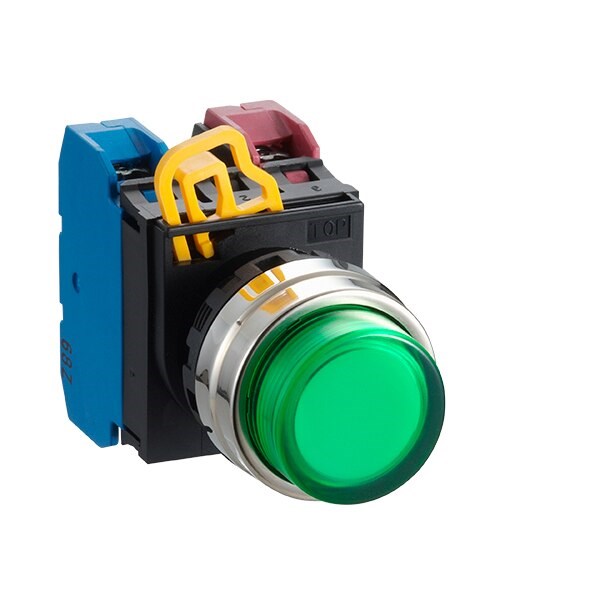

The YW Series Pushbutton is a reliable and robust choice for industrial and commercial applications. Designed with precision, this pushbutton caters to those who prioritize functionality and durability in their equipment.
Operating at a rated voltage of 230/240 VAC/DC, the YW Series Pushbutton ensures efficient performance across various electrical systems. Its illumination feature, powered by a built-in LED, provides clear visibility with a red lamp color, making it easy to identify during operation.
In terms of dimensions, the pushbutton measures 30 mm in width, 41.4 mm in height, and 64.8 mm in depth. This compact design allows for seamless integration into control panels while maintaining operational efficiency. The actuator type is extended with a diameter of 22 mm, complementing its cutout size perfectly for ease of installation.
Engineered to withstand challenging environments, the pushbutton operates effectively within an operational temperature range from -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. With an IP65 degree of protection on the front and IP20 at the terminal end, it offers excellent resistance against dust and water ingress.
The device meets several international standards including cULus listing, CE marking, UKCA certification, and CCC certification—ensuring compliance with global safety requirements.
For mechanical resilience, it boasts vibration resistance from 5-55 Hz and shock resistance up to 10 g/ms. The mechanical life expectancy stands at an impressive 0.25 million operations for single contact blocks or 0.1 million operations for double contact blocks.
The contact configuration includes one normally open (1NO) plus one normally closed (1NC) setup which enhances its versatility across different circuit designs. The maintained function further adds convenience by allowing users to keep circuits active without continuous pressure application.
Constructed with metal bezel material for enhanced durability under tough conditions—it supports insulation resistance up to 100 MOhm backed by rated insulation voltage capacity reaching as high as600 V alongwith humidity tolerance ranging from45-85%.
Overall,thispush buttonisdesignedtomeetthetechnicaldemandsof professionals seekingreliable,easy-to-installsolutionswithlong-lastingperformanceandcomplianceassurancesacrossvariousindustries.Theproductalsosupportsaratedcontinuouscurrentof10Awhichaddstoitsversatilityinhandlingdifferentloadsandapplicationswithinindustrysettings.Itscutoutsizeis22mmforseamlessintegrationintostandardpanelswithoutadditionalmodificationsneededorhasslefrominstallerslookingforquickturnaroundtimeswhenimplementingnewcomponentsintotheirsystems.MPN:
