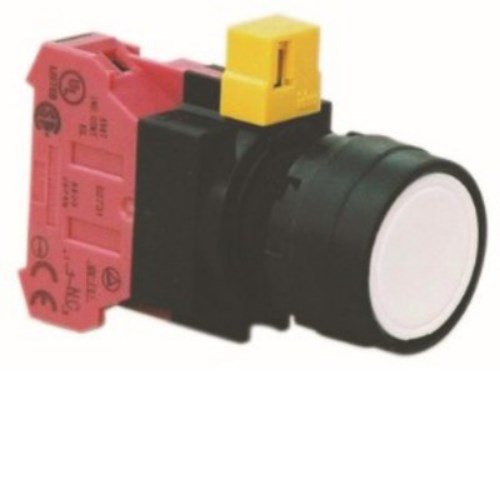

When it comes to selecting the right pushbutton for industrial and commercial applications, understanding the technical specifics is crucial. The HW Series Pushbutton stands out as a reliable choice, designed with durability and functionality in mind.
This non-illuminated pushbutton operates efficiently within a temperature range of -25 to 60 degrees Celsius, making it suitable for various environments. Its robust construction ensures performance under conditions with humidity levels between 45% and 85%.
The button's flush actuator type is crafted from durable plastic material, featuring a sleek round bezel in black that complements its green button color. This design not only enhances aesthetic appeal but also provides practical benefits in terms of ease of use and integration into control panels.
A significant feature of this pushbutton is its impressive degree of protection: IP65 rated at the front, ensuring resistance against dust ingress and low-pressure water jets from any direction. The terminals are rated IP20, providing basic protection against finger contact. This makes it an excellent option for environments where exposure to moisture or dust might be a concern.
In terms of electrical specifications, the HW Series Pushbutton offers a rated insulation voltage of 600 V and supports a continuous current rating up to 10 A. These attributes make it suitable for heavy-duty applications requiring reliable operation over extended periods.
The terminal type is screw-based, which facilitates secure connections during installation or maintenance processes. The contact configuration includes one normally open (1NO) contact made from silver material known for its excellent conductivity and longevity in switching operations.
With an insulation resistance measuring at 100 MOhm, this pushbutton ensures minimal leakage current paths across insulating materials—vital for maintaining system integrity over time.
Designed with practicality in mind, the cutout size required for mounting is standardized at 22 mm diameter—matching industry norms to simplify retrofitting or new installations without additional modifications needed on panel surfaces.
Overall, the HW Series Pushbutton combines essential features like durability under varied environmental conditions with strong electrical performance metrics—making it well-suited for those seeking dependable control solutions across diverse settings where reliability cannot be compromised.
