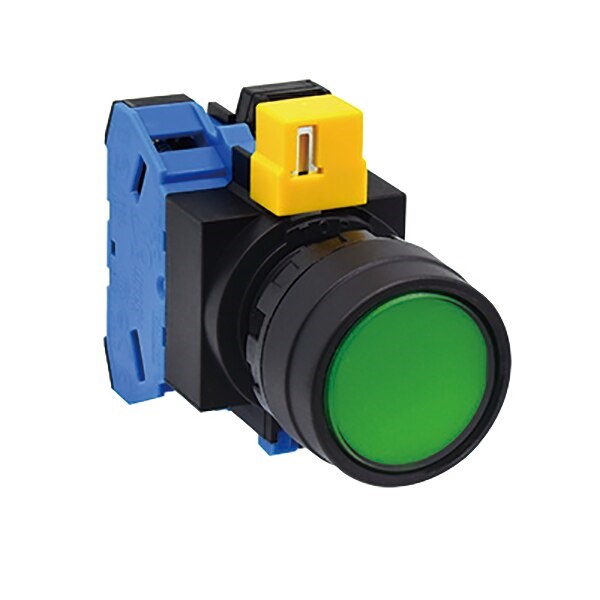

The HW Series pushbutton is a reliable and robust choice for industrial and commercial applications, designed with both functionality and durability in mind. This illuminated pushbutton operates efficiently within a temperature range of -25 to 60 degrees Celsius, making it suitable for various environmental conditions.
Featuring a flush actuator type, the HW Series pushbutton has a sleek design with a round bezel made from durable plastic. The bezel comes in black, complementing its professional appearance while maintaining practicality. With an IP65 rating at the front and IP20 at the terminal, this pushbutton offers excellent protection against dust and water ingress, ensuring reliability in demanding environments.
The electrical specifications are equally impressive. It supports a rated insulation voltage of 600 V and can handle a rated thermal current of up to 10 A. The contact configuration includes two normally open (2NO) and two normally closed (2NC) contacts made from silver, which enhances conductivity and longevity. An insulation resistance of 100 MOhm further assures safety during operation.
Despite being illuminated, this model does not include a lamp but features green lamp coloring when installed appropriately. The diameter measures 22 mm with an identical cutout size for easy integration into existing systems or panels.
Installation is straightforward thanks to screw-type terminals that provide secure connections. In terms of approvals, this pushbutton meets multiple international standards including UL listing, CE marking, ULKA approval, CSA certification, and TUV approval—ensuring compliance with stringent quality requirements globally.
Designed for extensive use with mechanical life reaching up to five million operations, the HW Series pushbutton promises long-term performance without frequent replacements or maintenance needs. Its momentary function makes it ideal for applications requiring brief activation periods.
Overall, the HW Series illuminated pushbutton stands out as an efficient solution offering high standards of safety and reliability across diverse settings where dependable control components are essential.
