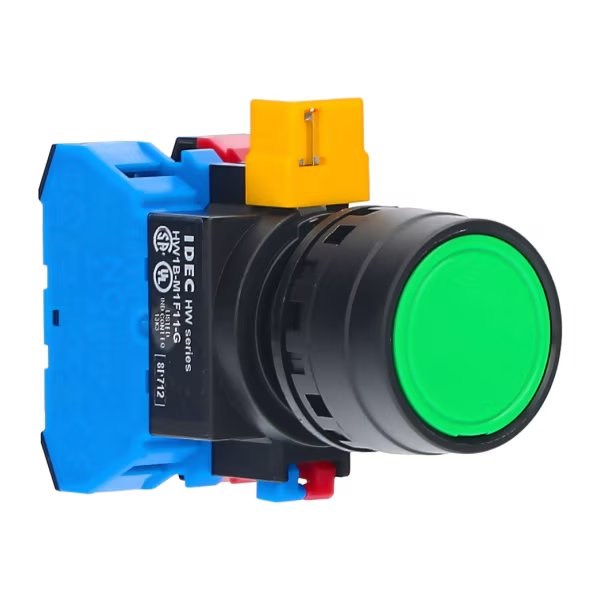

The HW Series pushbutton is a reliable choice for industrial and commercial applications, designed to meet the demands of professionals who prioritize performance and durability. This non-illuminated pushbutton features a flush actuator type with a sleek 22 mm diameter, making it suitable for various control panel designs.
Engineered to withstand harsh environments, the front of this pushbutton boasts an IP65 degree of protection, ensuring resistance against dust and water ingress. The terminal side offers IP20 protection, providing basic safeguarding from finger contact. Its robust construction is complemented by a plastic round bezel in black, which houses a white button that stands out for easy identification.
Operating efficiently between temperatures of -25 to 60 degrees Celsius and humidity levels ranging from 45% to 85%, this pushbutton is versatile across different climates. It supports a rated insulation voltage of 600 V and can handle a continuous current rating of up to 10 A, making it ideal for heavy-duty operations.
The contact configuration includes one normally open (1NO) and one normally closed (1NC) circuit, crafted from silver contact material known for its excellent conductivity and reliability over time. Installation is straightforward with screw-type terminals that ensure secure connections.
With an insulation resistance exceeding 100 MOhm, this device guarantees minimal leakage currents under standard conditions. The cutout size matches the actuator diameter at 22 mm, allowing seamless integration into existing setups or new installations without additional modifications.
Overall, the HW Series pushbutton combines functionality with resilience, offering an effective solution for those seeking dependable control components in demanding settings.
