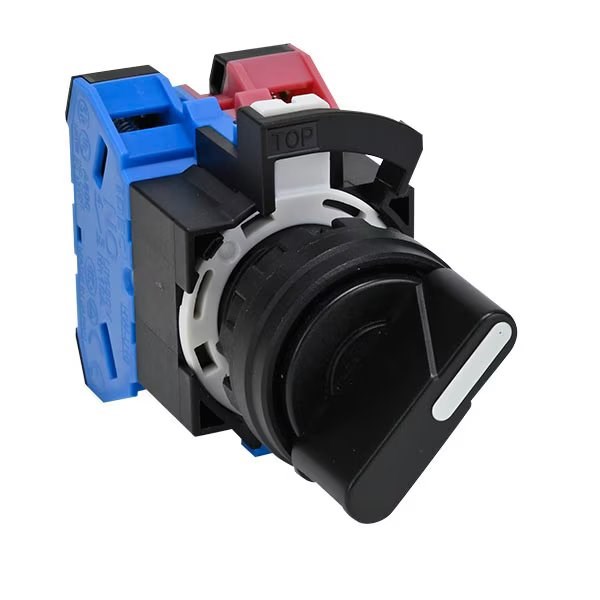

IDEC HW1S-2T40 Selector Switch 2Position Knob Plastic Screw Terminal

Product Code: HW1S-2T40

  • Selector switch with knob design
  • Handles 10 A current at 50/60 Hz
  • Operates in -25 to 60°C conditions
  • IP20/IP65 protection for durability
  • Complies with CE, CSA, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Selector Switch
Brand IDEC
Series HW
Bezel Material Plastic
Degree of Protection IP20, IP65
Insulation Resistance 50 MOhm
Mounting Hole Diameter 22 mm
Number of Positions 2
Operational Temperature -25 to 60 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 600 V
Standards and Approvals CE, CSA, UL
Switch Type Knob
Terminal Type Screw

Description

The IDEC HW1S-2T40 is a 22mm selector switch designed for secure and versatile connections. It features finger-safe (IP20) screw terminals, as well as push-in terminals, accommodating ring, fork, ferrule terminals, and bare wires. This switch ensures safety with all E-Stops meeting EN418 standards for IEC compliant positive action. For added reliability, it is UL listed, CSA certified, TUV approved, and CE marked.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
