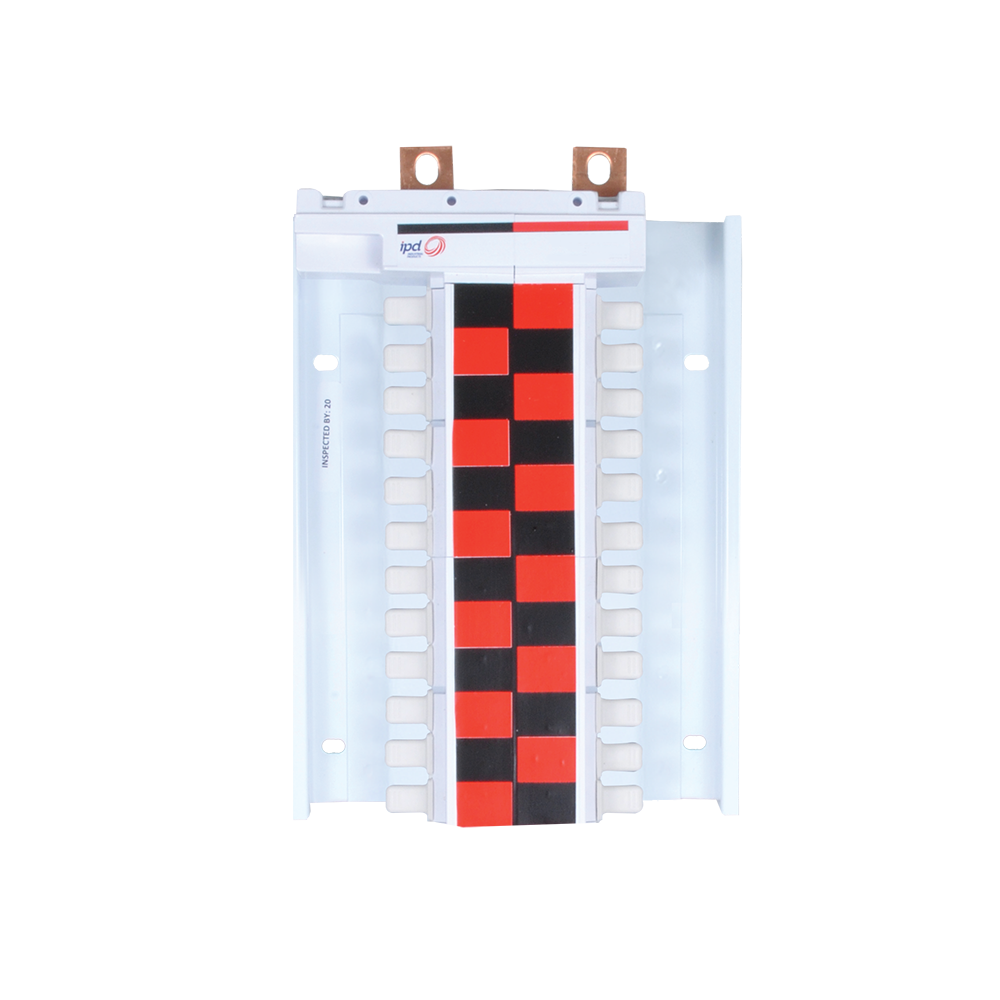

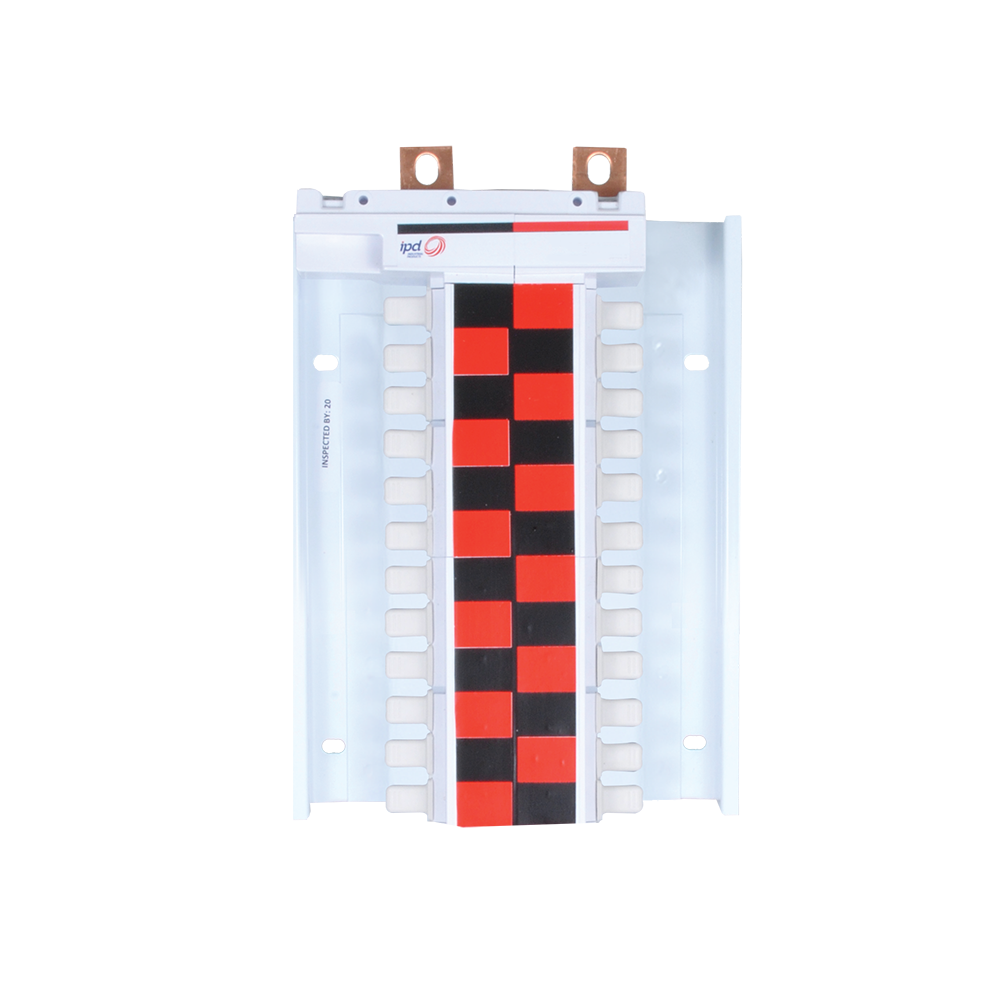

IPD ITDCR24A25T ENCAPSULATED DC CHASSIS 24P 250A TOP FEED

Product Code: ITDCR24A25T

The Encapsulated DC chassis is designed with 24P and a 250A top feed. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 2mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.

Technical Specifications

Brand IPD
Current Rating (A) 250
Feed Type Top Feed
No. of Poles 24
Rated Current (A) 250
Type of Feed Top Feed
Poles 24
