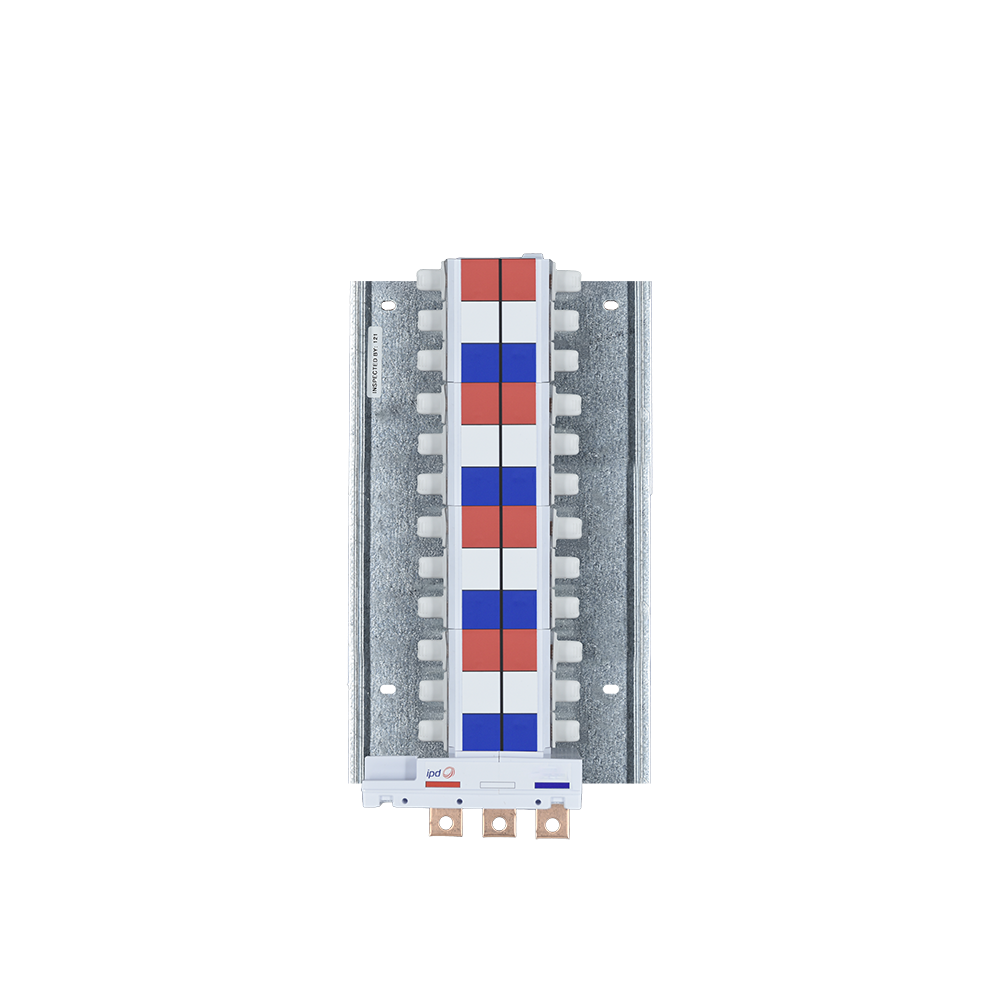

IPD ITH24A40B ENCAPSUL. CHASSIS 24P 400A BOTTOM FD 27mm PITCH

The Encapsulated Chassis is designed for S800 breakers in the IA range IPD. It has 24P and a 400A capacity with bottom feed. The chassis has a 27mm pitch and can withstand ratings of Icw 25kA/0.1s and 10kA/1s, as well as Icc 30kA. The incoming terminals are made of 3mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV for added durability.
