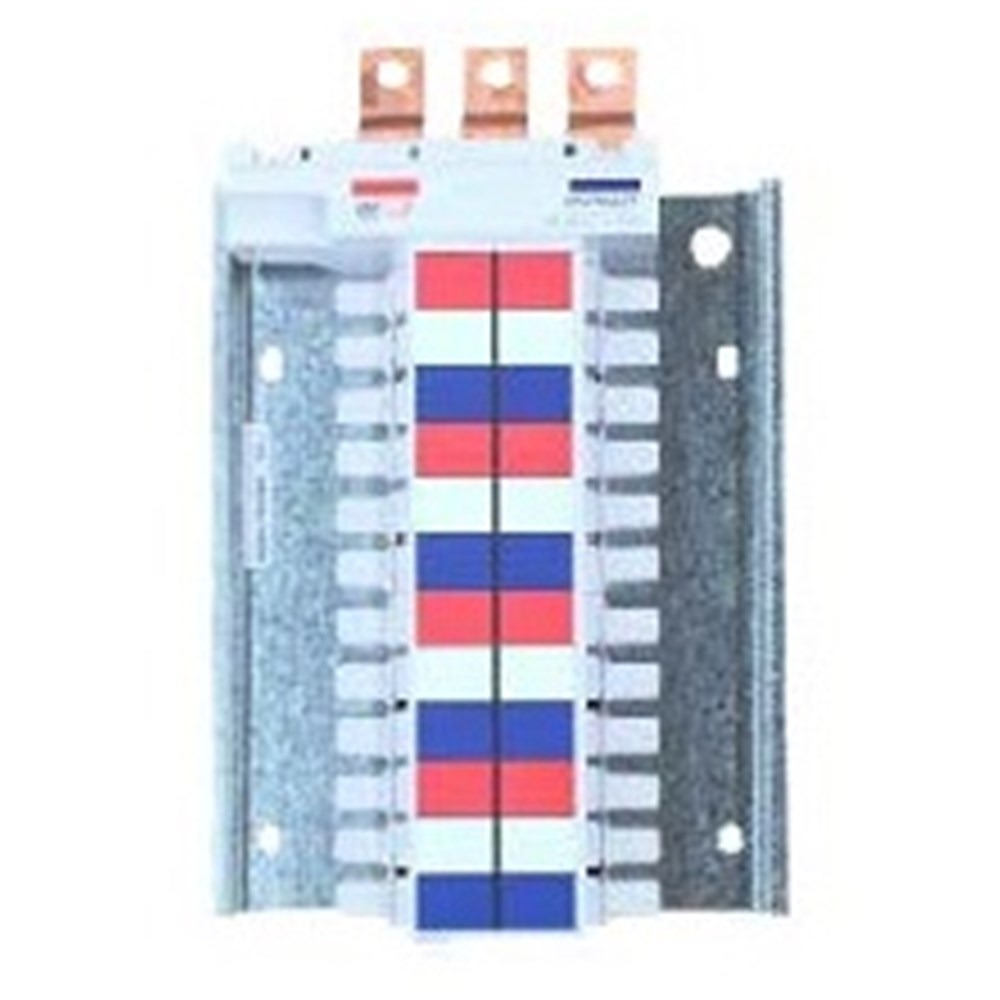

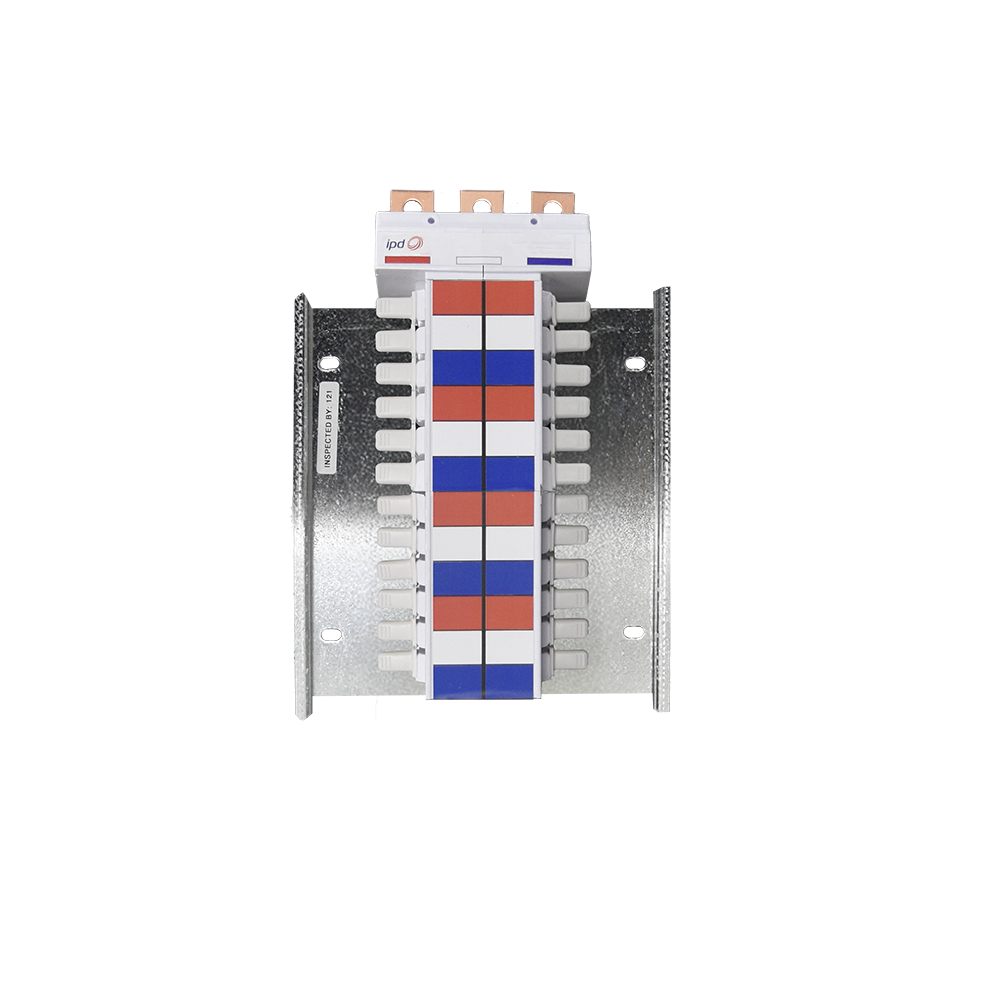

IPD IT24A40T ENCAPSUL. CHASSIS 24P 400A TOP FD 18mm PITCH

Product Code: IT24A40T

The Encapsulated Chassis is designed with 24P and a 400A capacity. It features a top feed and an 18mm pitch. The chassis has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 3mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.

Technical Specifications

Brand IPD
Current Rating (A) 400
Feed Type Top Feed
No. of Poles 24
Pitch Size (mm) 18
Poles 24
Rated Current (A) 400
Type of Feed Top Feed
