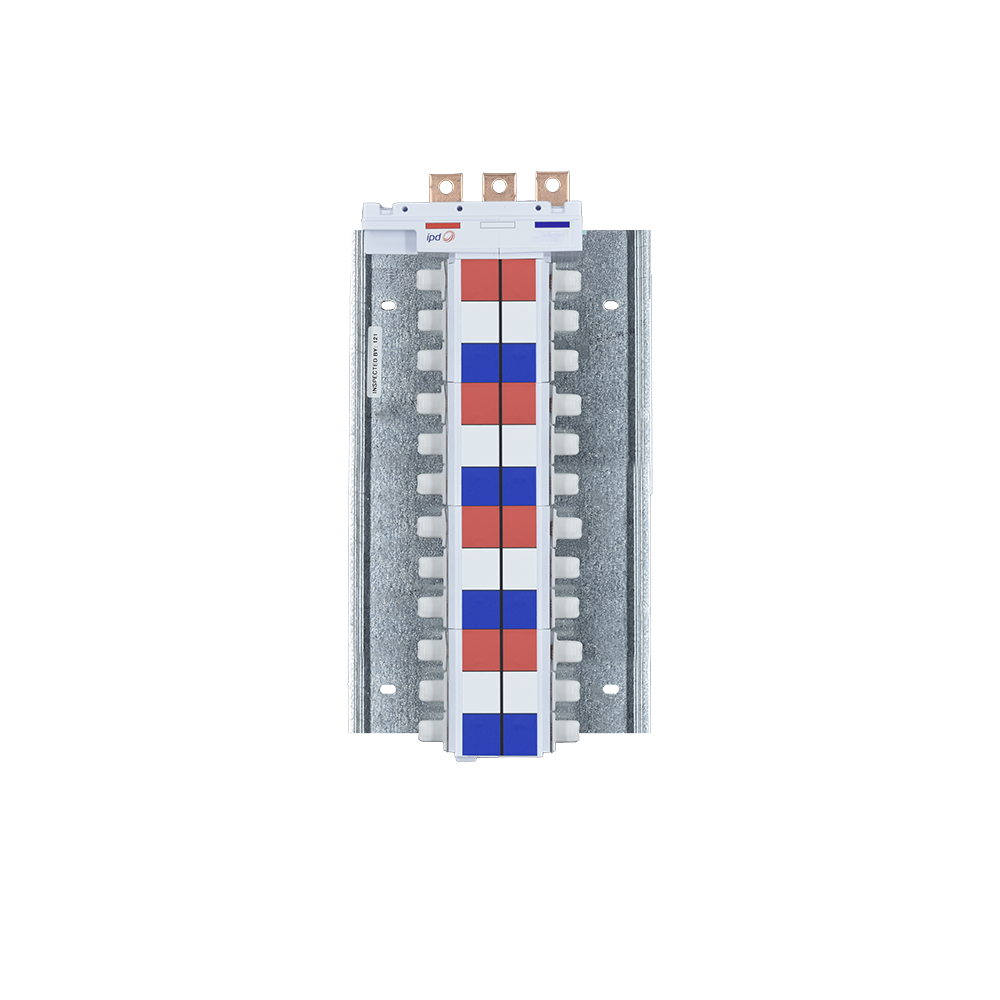

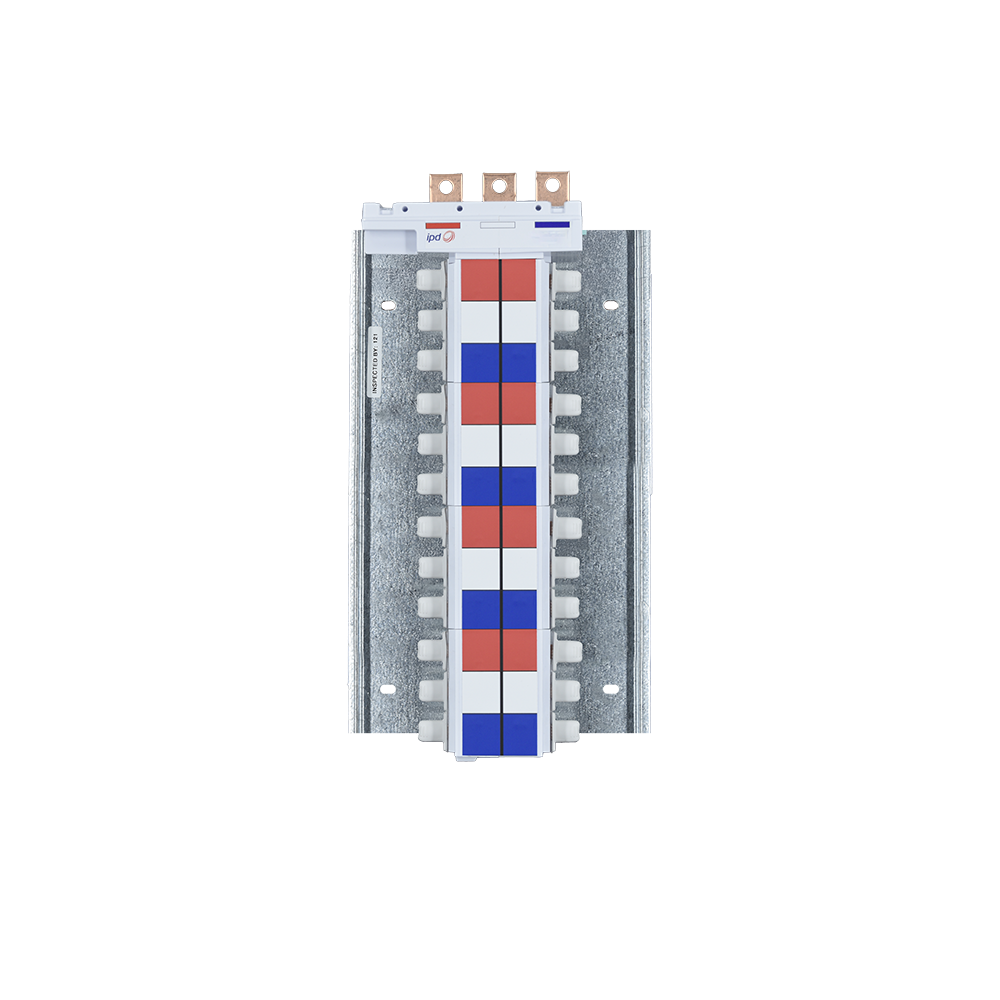

IPD ITH24A40T ENCAPSUL. CHASSIS 24P 400A TOP FD 27mm PITCH

The Encapsulated Chassis is designed for S800 breakers in the IA range IPD. It has 24P and a 400A capacity with top feed and a 27mm pitch. The chassis has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 3mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV for added durability.
