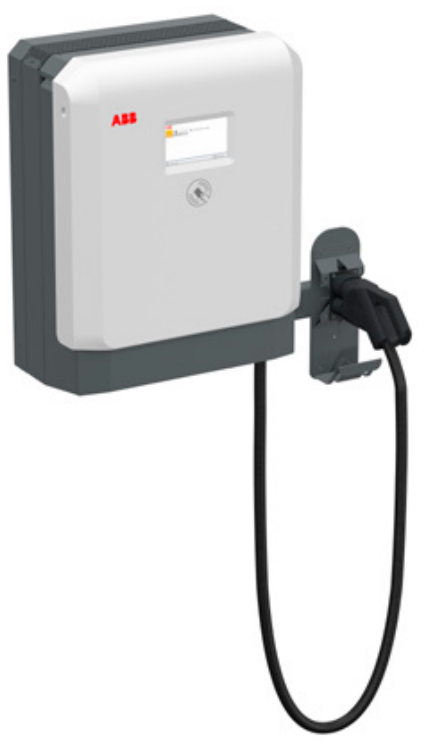

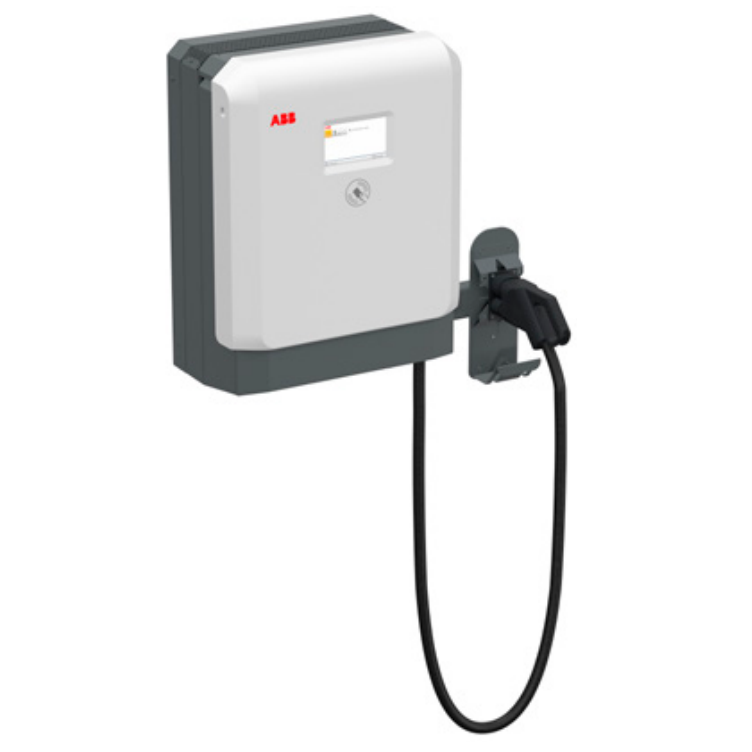

ABB TERRA DC EV CHARGER WALLBOX 3P 24kW CCS2 TWBCE24C07M00

Product Code: TWBCE24C07M00

The Terra DC EV Charger wallbox is a powerful charging solution for electric vehicles. It has a 3-phase power rating of 24 kW, making it capable of delivering fast and efficient charging. With its CCS 2 charging standard, it is compatible with a wide range of electric vehicles. The charger comes with a 3.5m cable length, providing flexibility in installation options. It also features a user-friendly 7" display and an RFID reader for easy access control. In terms of compliance, the Terra DC EV Charger wallbox is classified as EMC Class B, ensuring electromagnetic compatibility. It offers multiple communication interfaces including 3G/4G and Ethernet for seamless connectivity. Designed for convenience, this charger is ideal for wall mounting and is CE certified to meet safety standards. Whether at home or in commercial settings, the Terra DC EV Charger wallbox provides reliable and efficient charging for electric vehicles.

Technical Specifications

Brand ABB
Authentication Method RFID
Cable Length (m) 3.5
Charging Standard CCS2
Communication Cellular connection, 3G / 4G, 2 Port RJ45 Ethernet
Degree of Protection IP54
EMC Classification Class B
Input Current (A) 40 (AC)
Mounting Type Wall
No. of Phases 3
Nominal Power (kW) 22.5
Operational Temperature Range (°C) -35 to +45
Output Current (A) 60 (DC)
Output Voltage DC (V) 150 - 920 (CCS)
Rated Power (kW) 24 (Peak)
Rated Supply Voltage AC (V) 400
