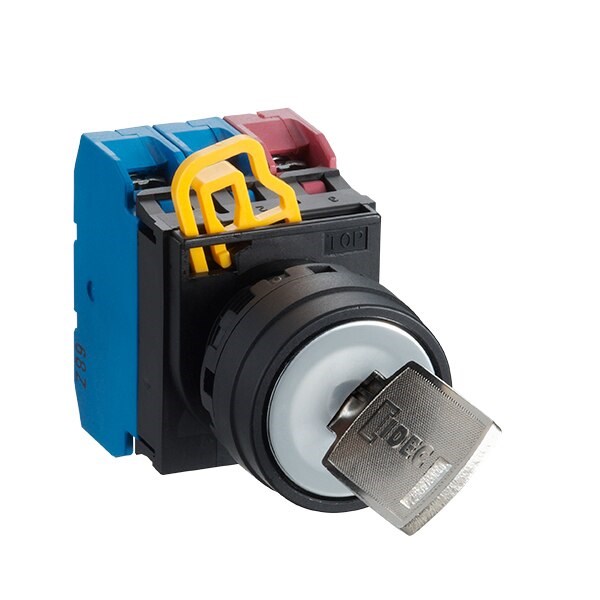

The YW Series Key Selector Switch is a robust and reliable choice for industrial and commercial applications, offering a blend of functionality and compliance with stringent standards. Designed to meet the demands of various operational environments, this switch provides users with essential features that ensure both performance and safety.
With a rated current of 10 A and supporting frequencies of 50/60 Hz, this key selector switch is suitable for diverse electrical systems, making it versatile across different settings. The unit's dimensions—30 mm in width, 41.4 mm in height, and 69.8 mm in depth—allow for compact installation without compromising on accessibility or ease of use.
This switch operates efficiently within an operational temperature range from -20 to 55 degrees Celsius, demonstrating its capability to perform under varying environmental conditions. Its terminal type utilizes M3.5 screws with a tightening torque specification of 1 N-m, ensuring secure connections during installation.
One notable feature is its dual degree of protection: IP20 for basic protection against touch by fingers or similar objects greater than 12 millimeters in diameter; IP65 offers complete protection against dust ingress and low-pressure water jets from any direction. This makes it suitable for more demanding environments where durability is crucial.
Meeting several international standards such as CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 ensures that the YW Series Key Selector Switch adheres to high-quality benchmarks recognized globally.
The mounting hole diameter is set at 22 mm which aligns with common industry practices for easy integration into existing panels or control boxes. The mode of operation features a spring return mechanism which automatically returns the actuator to its initial position after use—a practical feature that enhances user convenience while minimizing potential errors.
Rated insulation voltage stands at an impressive 600 V providing robust insulation properties necessary for safe operations in high-voltage scenarios. The contact configuration consists of one normally open (1NO) contact which suits applications requiring simple on/off operations controlled via key actuation.
The actuator type being key-operated adds an extra layer of security by restricting unauthorized access or accidental activation—a critical aspect especially in sensitive installations where precision control is paramount.
A round bezel made from durable plastic complements the overall design ensuring longevity even under frequent usage conditions while maintaining aesthetic appeal within control panels or machinery fronts.
Insulation resistance measures up at a substantial 100 MOhm reinforcing confidence in its electrical isolation capabilities thereby preventing unintended circuit paths that could lead to faults or inefficiencies over time.
In summary this YW Series Key Selector Switch combines essential technical specifications with rigorous compliance standards delivering reliability safety and ease-of-use required by professionals operating within industrial sectors looking for dependable solutions tailored towards their unique needs.
