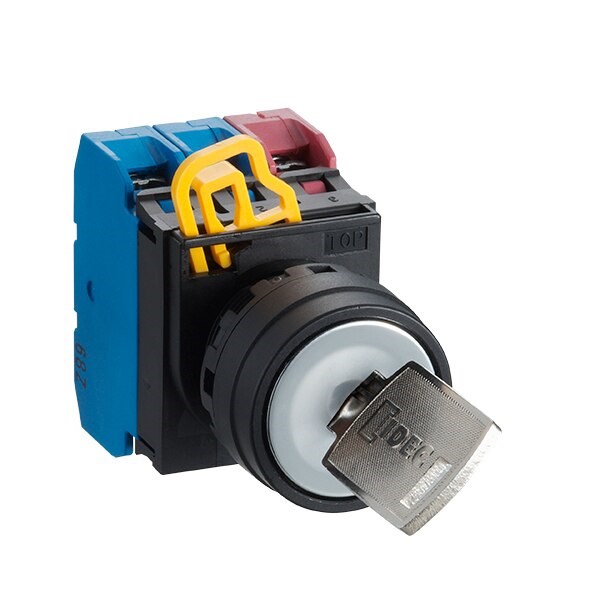

The YW Series Key Selector Switch is a robust and reliable component designed to meet the demands of industrial and commercial applications. With its practical features and compliance with international standards, this switch is well-suited for professionals seeking dependable performance.
This key selector switch handles a rated current of 10 A, making it suitable for various electrical circuits. It operates efficiently at both 50 Hz and 60 Hz frequencies, providing flexibility in diverse environments. The device's dimensions—30 mm in width, 41.4 mm in height, and 69.8 mm in depth—ensure it fits seamlessly into most standard installations.
Designed to withstand harsh conditions, the operational temperature range spans from -20 to 55 degrees Celsius. This adaptability makes it ideal for use in environments that experience significant temperature fluctuations. The switch boasts an impressive degree of protection with IP20 and IP65 ratings, indicating its resistance to dust ingress and water jets from any direction.
Installation is straightforward thanks to the M3.5 screw terminal type requiring a tightening torque of just 1 N-m. The mounting hole diameter of 22 mm ensures compatibility with common panel designs.
The key selector switch adheres to several prestigious standards including CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 certifications which assure users of its safety and reliability across different regions.
Functionally versatile, this switch features a spring return mode of operation with a contact configuration of one normally open (NO) contact plus one normally closed (NC) contact allowing for flexible circuit design options depending on your specific needs.
Aesthetically designed yet functional—the round bezel made from durable plastic houses the actuator type—a key ensuring secure operation while preventing unauthorized access or accidental activation.
With an insulation resistance rating at an impressive 100 MOhm coupled with a rated insulation voltage up to 600 V—this device offers excellent electrical isolation safeguarding against potential faults within high-voltage systems enhancing overall system integrity significantly reducing downtime risks due maintenance issues related failures caused by inadequate insulation properties found other lesser quality switches available market today
When considering installation location please note operation position left hand side orientation which may influence placement decisions based upon existing space constraints surrounding equipment layout configurations already present site premises where intended use occurs frequently encountered situations similar setups elsewhere industry sectors globally too numerous mention individually here contextually relevant nonetheless important factor take account during planning stages prior implementation phase begins fully realize benefits derived utilizing such advanced technological solutions effectively efficiently manner possible achieve desired outcomes ultimately benefiting bottom line profitability margins long term perspective view point strategic objectives aligned accordingly Manufacturer Part Number not applicable
