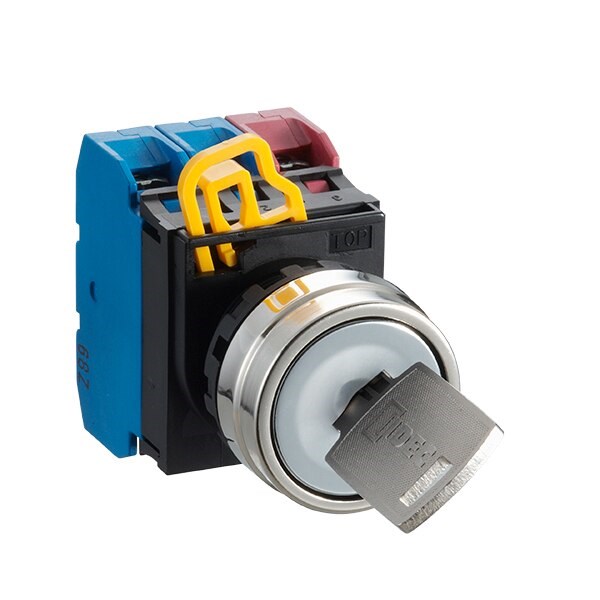

The YW Series Key Selector Switch is a reliable choice for industrial and commercial applications, designed to meet rigorous standards while providing dependable performance. This switch is engineered to handle a rated current of 10 A and operates efficiently at frequencies of 50/60 Hz. Its compact dimensions—30 mm in width, 41.4 mm in height, and 69.8 mm in depth—make it suitable for installations where space is at a premium.
Built with versatility in mind, the switch can withstand operational temperatures ranging from -20 to 55 degrees Celsius, ensuring consistent functionality across various environmental conditions. The M3.5 screw terminals provide secure connections with a tightening torque of 1 N-m, facilitating straightforward installation and maintenance.
The key selector switch offers dual protection levels with an IP20 rating for basic protection against solid objects and an enhanced IP65 rating for resistance against dust ingress and low-pressure water jets from any direction. These features make it ideal for environments that demand robust equipment capable of enduring harsh conditions.
Compliance with international standards such as CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 underscores its quality assurance and suitability for global markets.
Designed with practicality in mind, the switch fits into a standard mounting hole diameter of 22 mm using its round metal bezel—a durable choice that complements its aesthetic appeal while offering corrosion resistance.
Operationally efficient, this spring return model ensures the actuator returns to its initial position after use; this feature enhances safety by preventing accidental activation or deactivation of connected circuits. The contact configuration includes one normally open (1NO) contact which simplifies circuit design needs without compromising on functionality.
With an insulation resistance standing at an impressive 100 MOhm and a rated insulation voltage up to 600 V, this device promises excellent electrical isolation capabilities essential for safe operation within high-voltage systems.
The actuator's key operation positioned on the left provides intuitive control access tailored towards user convenience during engagement or disengagement processes—a thoughtful design aspect that resonates well within technical settings requiring precision handling.
In summary, whether you're upgrading existing systems or integrating new solutions into your operations framework—the YW Series Key Selector Switch offers reliability backed by stringent testing parameters making it a steadfast component choice amidst demanding industrial landscapes.
