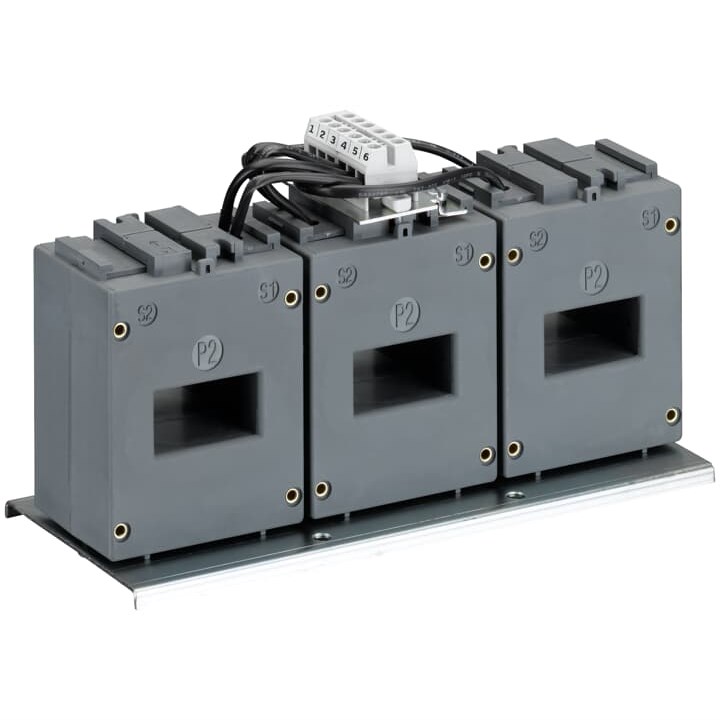

ABB CT5L500R/4 External Current Transformer 300-500A

Product Code: CT5L500R/4

  • Supports 300-500 A current
  • Designed for 3-phase systems
  • Reliable screw connection type
  • Compact size: 245x135x100 mm
  • Compliant with IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Phases 3
Nominal Current (A) 300 - 500
Current Ratio 500/4
Window Size H x W (mm) 22 x 42
Overcurrent Limiting Factor FS 10
Copper Rail Yes
Rated Secondary Current - I?? (A) 4
Rated Primary Current - I?? (A) 500
Product Type External Current Transformer
Brand ABB
Connection Type Screw
Depth 100 mm
Height 135 mm
Model 3-phase Current Converter Set
Phase 3
Rated Current 300-500 A
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, RoHS, REACH, CE
Terminal Type Screw Terminals
Width 245 mm

Description

External current transformer for currents up to 500 A primary side. The secondary side is feed to the UMC100.3 motor controller. This enables the UMC100.3 to see up to the primary current.
