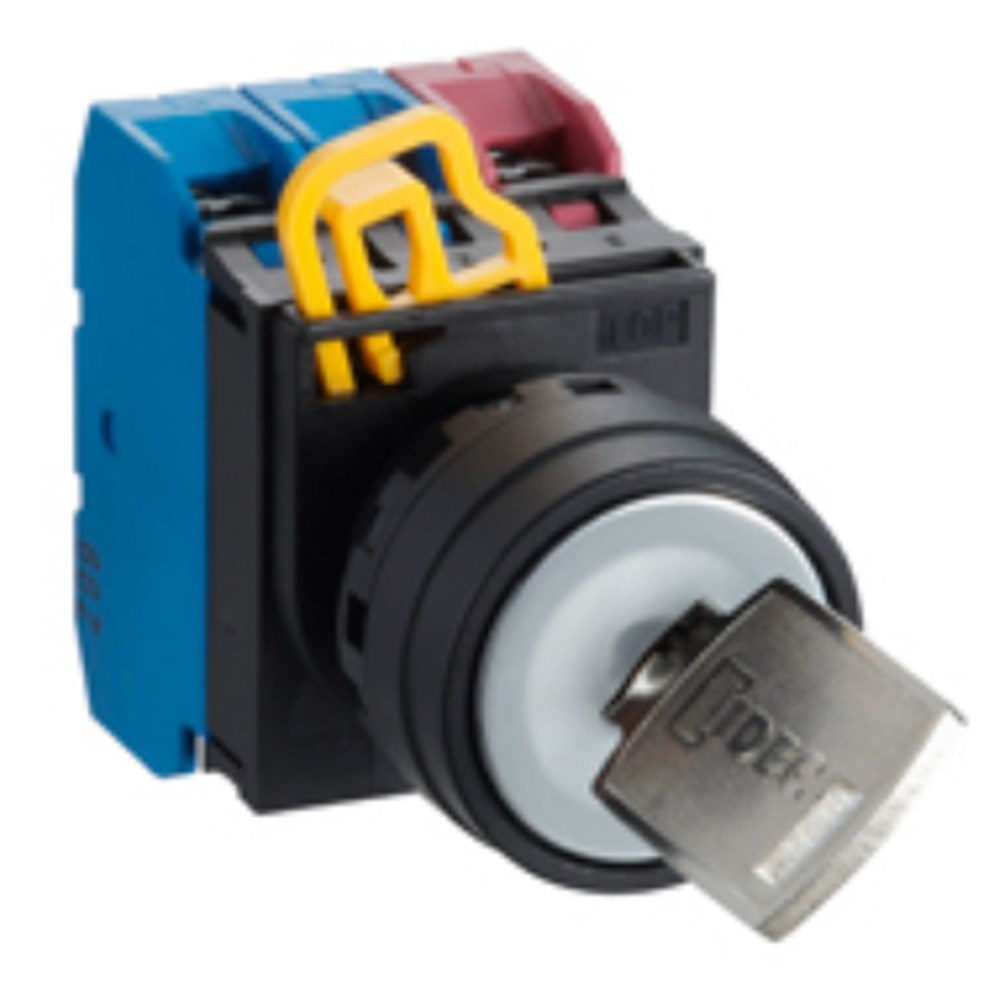

The YW Series Key Selector Switch is a reliable choice for industrial and commercial applications, offering a balance of functionality and durability. Designed to cater to various operational needs, this switch stands out with its robust specifications.
With a rated current of 10 A and supporting frequencies of 50/60 Hz, it ensures efficient performance across diverse electrical systems. Its compact dimensions—30 mm in width, 41.4 mm in height, and 69.8 mm in depth—make it suitable for installations where space is limited yet reliability cannot be compromised.
This key selector switch operates effectively within an operational temperature range from -20 to 55 degrees Celsius, making it versatile enough for different environmental conditions. The M3.5 screw terminals ensure secure connections with a tightening torque of 1 N-m, providing ease during installation while maintaining stability throughout its lifecycle.
One of the standout features is its dual degree of protection: IP20 and IP65. This means that while the switch offers basic protection against solid objects under IP20, the IP65 rating further ensures resistance against dust ingress and low-pressure water jets from any direction—a crucial factor for demanding environments.
Compliance with multiple standards such as CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 underscores its adherence to international safety norms and quality benchmarks.
The unit fits seamlessly into panels with a mounting hole diameter of 22 mm and features a spring return mode of operation which automatically returns the actuator to its original position after use—a practical feature enhancing user convenience.
Rated insulation voltage at 600 V combined with an impressive insulation resistance of 100 MOhm highlights its capability to withstand high voltages without compromising safety or function.
Its contact configuration comprises two normally open (2NO) contacts which are ideal for circuit control tasks requiring momentary connection closure upon actuation by key rotation towards the right operation position.
A round plastic bezel not only contributes to aesthetic appeal but also adds an extra layer of durability against wear over time while keeping costs manageable compared to metal alternatives.
For those prioritizing both performance integrity and compliance in their selection process—the YW Series Key Selector Switch emerges as an adept solution tailored for technical requirements without unnecessary frills or complexities.
