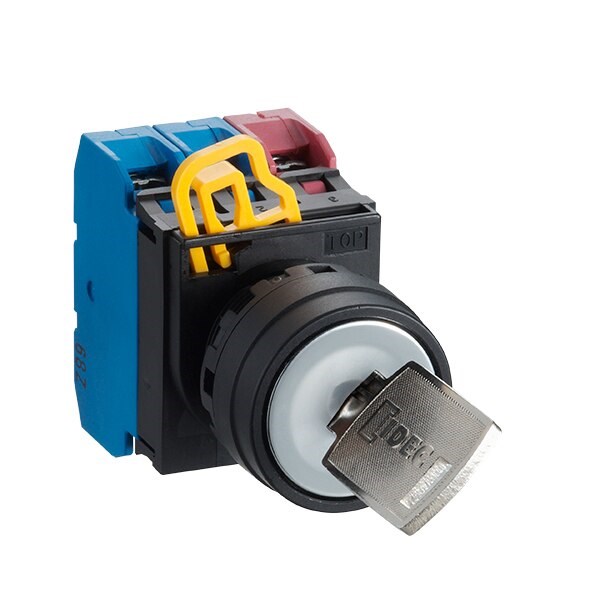

The YW Series Key Selector Switch is a versatile and reliable component designed for industrial and commercial applications. It offers robust performance with a rated current of 10 A, making it suitable for various electrical control systems. Operating efficiently at both 50 Hz and 60 Hz frequencies, this switch provides flexibility in diverse environments.
With dimensions measuring 30 mm in width, 41.4 mm in height, and a depth of 69.8 mm, the compact size ensures easy integration into control panels without consuming excessive space. The operational temperature range from -20 to 55 degrees Celsius highlights its capability to function effectively under varying climatic conditions.
The switch features an M3.5 screw terminal type with a tightening torque of 1 N-m, ensuring secure connections during installation. Its degree of protection includes IP20 for standard protection against solid objects and IP65 for enhanced resistance against dust and water ingress—ideal for demanding settings where durability is crucial.
Adhering to rigorous standards such as CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, and UL508 certifications underscores its compliance with international safety regulations—providing peace of mind regarding reliability and quality assurance.
Designed with a mounting hole diameter of 22 mm, the key selector switch allows straightforward panel integration while maintaining stability during operation due to its spring return mode which automatically returns the actuator to its original position after use.
Rated insulation voltage stands at an impressive 600 V offering significant protection against electrical faults or overloads safeguarding sensitive equipment connected downstream from potential damage caused by unexpected surges or spikes within circuits themselves
The contact configuration comprises one normally open (NO) plus one normally closed (NC) circuit providing versatility across numerous applications whether used independently together simultaneously depending upon specific needs requirements present each unique scenario faced day-to-day operations encountered throughout industry sectors worldwide today
Featuring a round plastic bezel coupled alongside right-hand operation positioning users will find intuitive ease-of-use when engaging disengaging mechanisms repeatedly over time thus enhancing overall user experience productivity levels maintained high standards expected modern workplaces globally now more than ever before seen prior history alike
With insulation resistance reaching up towards maximum level possible namely hundred mega-ohms further reinforces robust nature product itself delivering exceptional longevity service life expectancy beyond typical projections made initially outset purchase decisions taken place earlier stages procurement process involved here too naturally speaking course Manufacturer Part Number: YW
