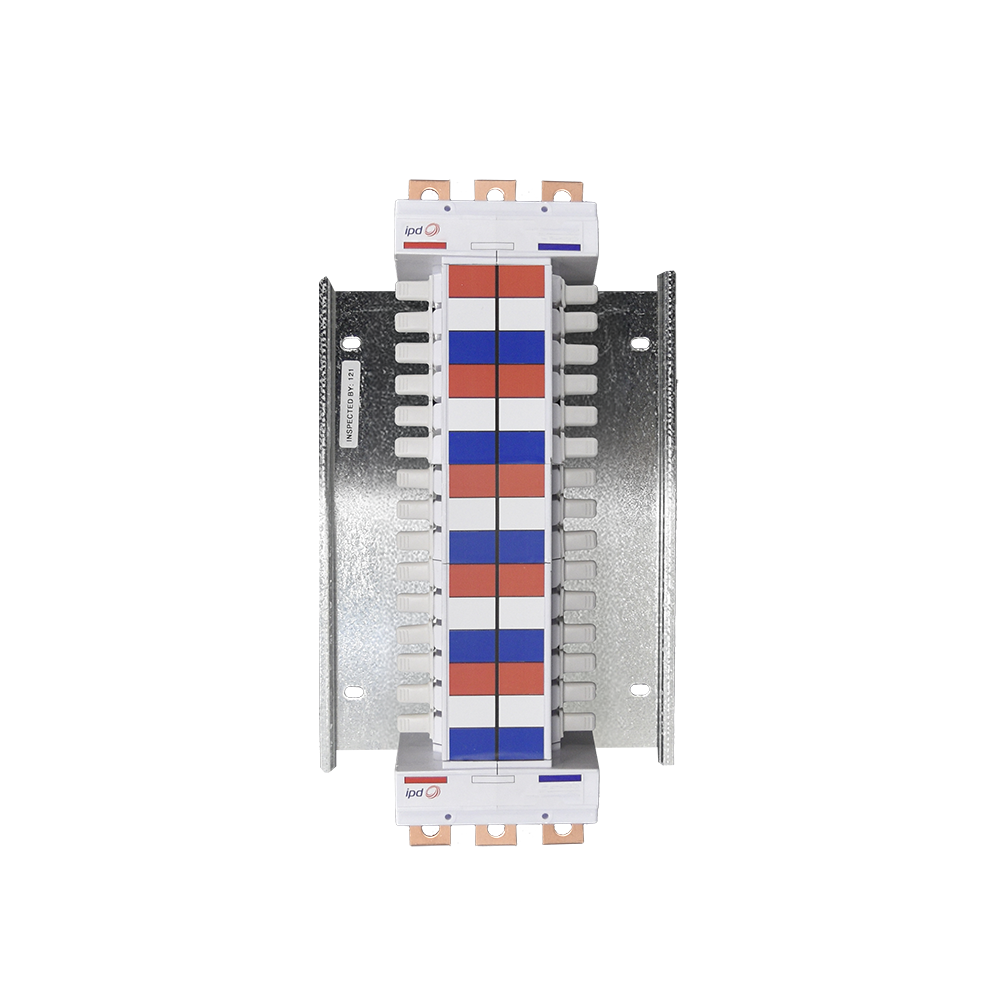

IPD IT30A25U ENCAPSULATED CHASSIS 30P UNIVERSAL FEED 250A RATED 18mm PITCH

Product Code: IT30A25U

The Encapsulated Chassis is a 30P 250A universal feed with an 18mm pitch. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The chassis features 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.

Technical Specifications

Brand IPD
Current Rating (A) 250
Feed Type Universal Feed
No. of Poles 30
Pitch Size (mm) 18
Poles 30
Rated Current (A) 250
Suitable For S200
To Suit ABB MCB - S200
Type of Feed Universal Feed
