ABB S2-M3-50 3-Phase Power Infeed Block 3P 690VAC 250VDC

Product Code: S2-M3-50

  • Rated for 690 VAC and 250 VDC
  • IP20 protection rating
  • Screw terminal connection
  • Compatible with solid conductors
  • Complies with IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Inputs 3
No. of Outputs 3
No. of Poles 3
Nominal Current (A) 125
Rated Operational Current (A) 125
Rated Operational Voltage DC (V) 250
Rated Operational Voltage AC (V) 690
Dimensions (mm) 54W x 65H x 59.3D
Suitable For Solid Conductors
Conductor Cross Section (mm²) 10
Product Type 3-Phase Power Infeed Block
Brand ABB
Connection Type Screw Terminal
Degree of Protection IP20
Depth 59.3 mm
Height 65 mm
Mounting Type Screw
Number of Poles 3
Rated Voltage 690 VAC, 250 VDC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1
Suitable For Use With Solid Conductors
Terminal Type Screw
Width 54 mm

Description

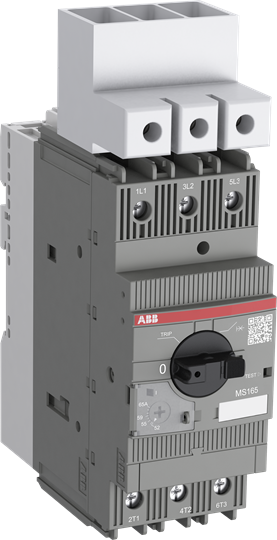

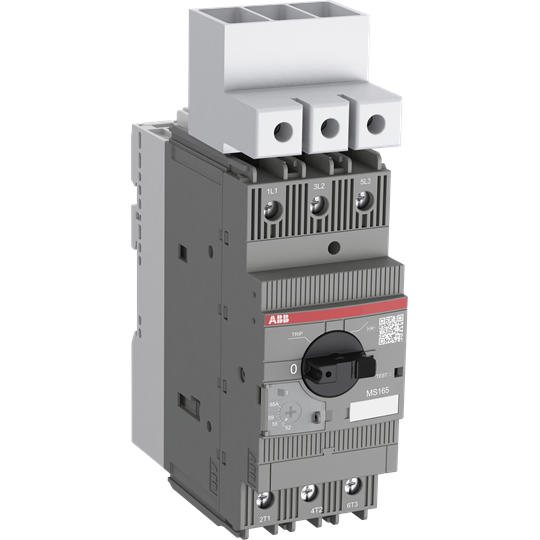

S2-M3-50 three phase feeder terminals allow the connection of cable cross sections up to 50mm². They are usable with MS165 manual motor starters. The rated current is 125 A (IEC) / 120 A (UL).
