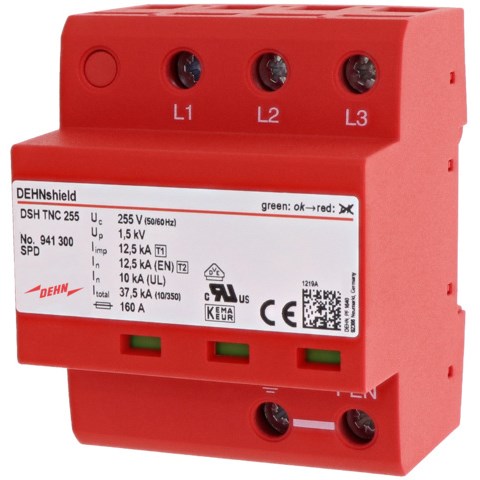

DEHN DSHTNC255 Combined Lightning Current and Surge Arrester 37.5kA 3-P 255VAC Thermoplastic IP20

Product Code: DSHTNC255

  • Protects power supply systems from surges
  • Rated voltage of 255 VAC for reliable performance
  • DIN rail mounting for easy installation
  • Complies with EN 61643-11 standards
  • IP20 protection ensures safe operation
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 72W x 90H x 72D
No. of Poles 3
Nominal Voltage AC (V) 230
Reference No. 941300
Suitable For Power Supply Systems
Weight (kg) 0.386
Enclosure Material Thermoplastic
Weight (g) 415.8
Mounting Method DIN Rail 35mm
Maximum Continuous Voltage AC (V) 255
Lightning Impulse Current (10/350 µs) - Iimp (kA) 37.5
Product Type Combined Lightning Current and Surge Arrester
Brand DEHN
Degree of Protection IP20
Depth 72 mm
Height 90 mm
Lightning Current Carrying Capability 25 kArms
Lightning Impulse Current 37.5 kA
Material Thermoplastic
Mounting Type DIN Rail
Number of Poles 3
Rated Voltage 255 VAC
Standards and Approvals EN 61643-11
Suitable For Use With Power Supply Systems
Weight 415.8 g
Width 72 mm
