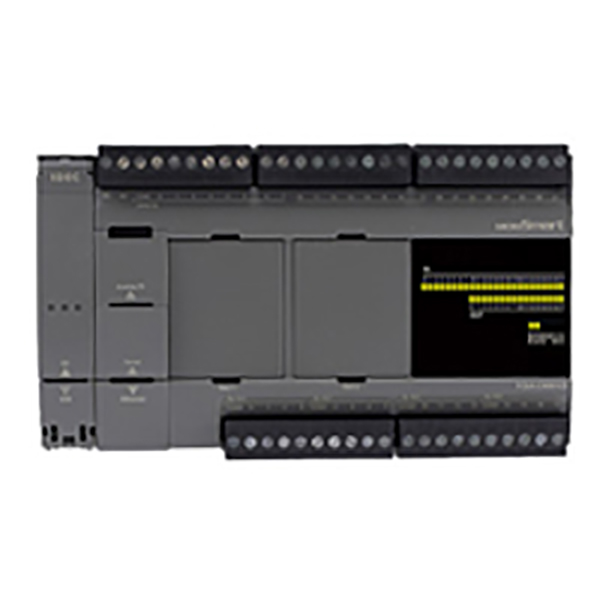

IDEC CPU 12V DC TRANSISTOR SOURCE MICRO SMART PLC FC6A-C40P1DE

Product Code: FC6A-C40P1DE

The IDEC FC6A-C40P1DE is a MicroSmart PLC designed for advanced control applications. It features 40 I/O points with J1939 support and operates on 24VDC with transistor sink outputs. This PLC includes an embedded SD memory port, Modbus TCP and RTU capabilities, and user-selectable RS232C/RS485 communication options. With data logging and web server functions, it offers extensive programming and data storage capacity. Certified with cULus CE Class 1 Div 4, it ensures safe operation in demanding industrial environments.

Technical Specifications

Brand IDEC
Programming Language Ladder, Script
Warranty Period (Months) 36
Operational Temperature Range (°C) -25 to 65
Maximum Analog Inputs 6
Maximum Digital Inputs 40
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 12
Power Consumption (W) 3.12
Rated Frequency (Hz) 50/60
Dimensions (mm) 106.5W x 163H x 75.7D
Timer Function 1024
Weight (g) 530
Voltage Range (DC) 10.2 to 18
Voltage Range AC (V) 85 to 264
