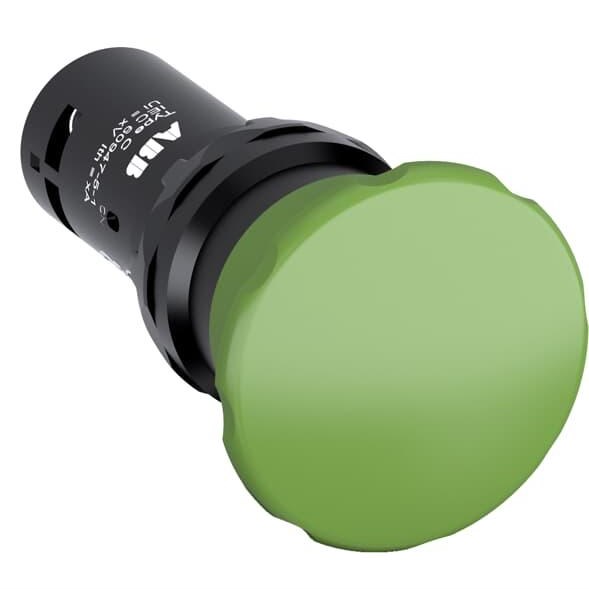

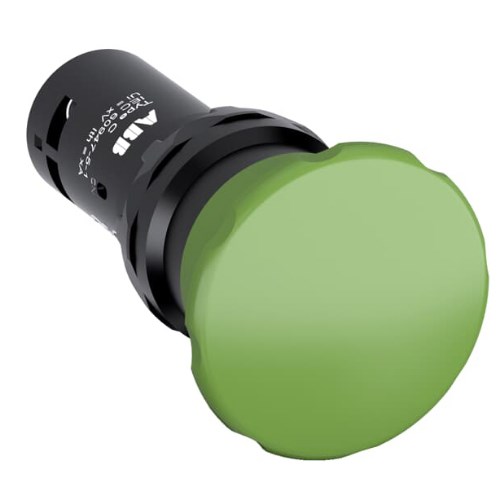

When it comes to selecting a reliable pushbutton for industrial and commercial applications, the technical specifications of this product make it a solid choice. Designed with a mushroom actuator, the 40 mm diameter ensures ease of use while maintaining safety standards.
Rated for 300 VAC at both 50 and 60 Hz frequencies, this pushbutton is well-suited for various electrical environments. It operates effectively within temperatures ranging from -25 to 70°C, making it versatile across different climates. Additionally, its storage temperature range of -40 to 85°C provides flexibility in inventory management.
The pushbutton features a screw clamp connection type with screw terminals that require a tightening torque of 1 N-m. This design supports wire stripping lengths of 6 mm and accommodates flexible or solid wires with ferrule capacities between 0.5 and 1.5 sq-mm.
Safety is paramount in industrial settings, and this device meets multiple protection standards: IP3, IP66, IP67, IP69K on the front side ensures robust resistance against dust and water ingress; meanwhile, the IP20 rating at the terminal end offers adequate protection during installation.
Adhering to IEC/EN standards such as IEC/EN 60073 and IEC/EN 60947 series assures compliance with international norms for control circuit devices. The rated impulse withstand voltage stands at an impressive 6 kV which helps protect against transient overvoltages.
The contact configuration includes one normally open (NO) and one normally closed (NC) contact setup suitable for momentary functions—a common requirement in emergency stop applications or other temporary activation needs. With a rated operational current of up to 0.2 A and thermal current capacity reaching up to 5 A, it provides ample performance headroom.
For enclosure compatibility, it fits diverse NEMA types including NEMA 1,12,13 as well as outdoor-friendly options like NEMA types such as NEMA Type:3R ,4 ,and even more stringent conditions under type:4x . This makes it adaptable across various housing requirements whether indoor or exposed environments are concerned .
Aesthetically speaking ,the bezel material made from durable plastic comes available either black or green color choices depending upon your panel design preferences .
In summary,this mid-lifecycle pushbutton combines robust functionality with high-grade safety features ensuring long-term reliability across numerous installations without compromising on industry standards .
