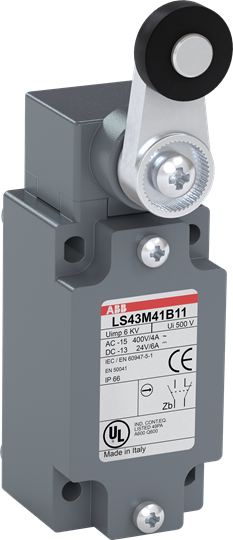

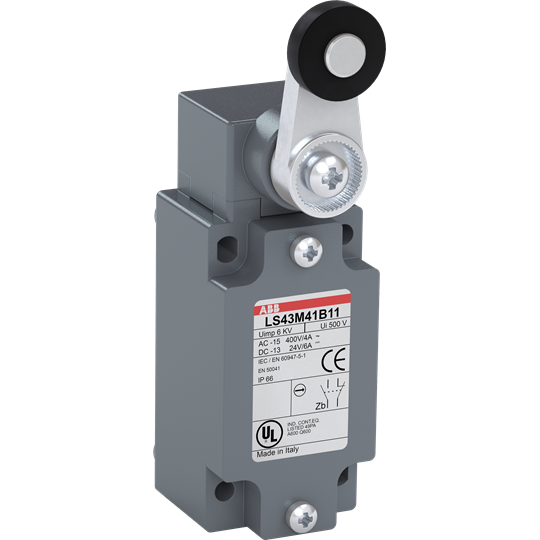

ABB LS43M41B11 Limit Switch 22mm Plastic Roller Lever 1NO-1NC 40mm W Metal

Product Code: LS43M41B11

Rated for multiple currents: 3.1 A, 10 A, 5.5 A, 3 A
Durable metal housing with IP66 protection
Operates in temperatures from -25 to 70°C
Certified by CE and UL standards
Long-lasting with 25 million mechanical operations

Specifications

Product Type	Limit Switch
Brand	ABB
Actuator Material	Plastic
Actuator Type	22 mm Adjustable Roller Lever
Contact Configuration	1NO+1NC
Degree of Protection	IP66
Height	133 mm
Housing Material	Metal
Length	60 mm
Mechanical Durability	25000000 Operations
Mounting Type	40 mm EN 50041
Operational Temperature	-25 to 70 deg C
Rated Current	3.1 A, 10 A, 5.5 A, 3 A
Standards and Approvals	CE,UL
Switching Type	Snap Action
Weight	0.279 kg
Width	40 mm

Documents

IPD Product Catalogue

IPD Product Catalogue V17
