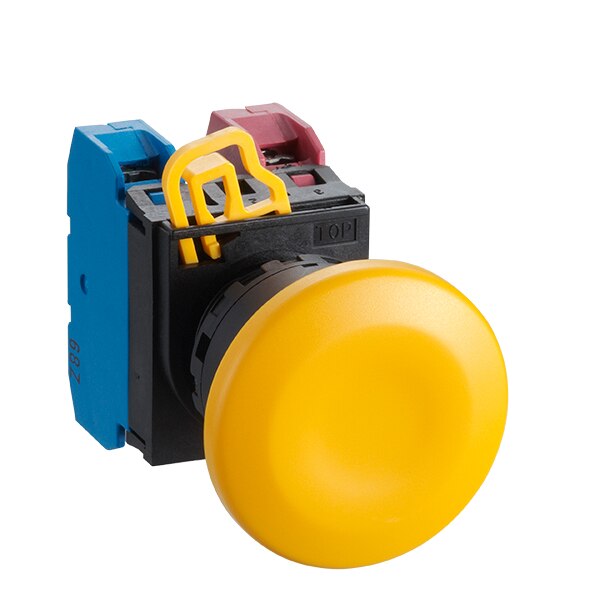

<p>The YW Series Pushbutton is a robust and reliable choice for industrial and commercial applications. Designed with practicality in mind, this non-illuminated pushbutton offers a straightforward solution for control systems requiring dependable performance.</p><p>With dimensions of 30 mm in width, 41.4 mm in height, and a depth of 66.3 mm, the pushbutton is compact yet substantial enough to ensure ease of use. It operates efficiently within an operational temperature range from -20 to 55 degrees Celsius, making it suitable for diverse environments.</p><p>In terms of protection, the front boasts an IP65 rating while the terminal is rated at IP20. This ensures that the device can withstand dust ingress and low-pressure water jets from any direction on its front side—a critical feature for maintaining functionality in demanding settings.</p><p>The YW Series meets several industry standards including cULus listing, CE marking, UKCA certification, and CCC certification—providing peace of mind regarding compliance with safety regulations.</p><p>For mechanical resilience, it offers vibration resistance between 5-55 Hz and shock resistance up to 10 g/ms. These attributes are essential for maintaining consistent operation under physically challenging conditions.</p><p>Electrical specifications include a rated insulation voltage of 600 V and an insulation resistance of 100 MOhm. The contact configuration features one normally open (1NO) contact made from silver material which ensures excellent conductivity and durability over time.</p><p>The actuator type is a mushroom design with a diameter of 40 mm—ideal for easy activation even when wearing gloves or other protective gear. Its momentary function means it returns to its original position after being pressed—a common requirement in emergency stop applications or machinery controls where quick reset capability is needed.</p><p>Storage temperatures ranging from -40 to 85 degrees Celsius further enhance its versatility across different climates or storage conditions without compromising integrity or performance over time.</p><p>With humidity tolerance between 45-85%, this pushbutton remains reliable even in varying atmospheric conditions typical within industrial settings.</p><p>Constructed with a plastic bezel material ensuring both lightweight design and durability—the white button color provides clear visibility against most backgrounds enhancing operational efficiency by reducing user error potential during fast-paced tasks requiring immediate response actions such as stopping equipment quickly if necessary due primarily because they’re easily identifiable at just glance alone thanks largely imparted through their distinctive aesthetic appeal combined alongside functional utility aspects inherently built into each unit themselves right down unto every last detail imaginable!</p><p>This product also supports cutout sizes measuring precisely at exactly forty millimeters thus allowing seamless integration into existing panels without need additional modifications whatsoever thereby saving both time resources otherwise spent unnecessarily retrofitting new installations altogether instead focusing solely upon what truly matters most: achieving optimal results consistently throughout entire lifespan expected usage scenarios encountered daily basis alike regardless situation arise unexpectedly anytime anywhere worldwide today tomorrow beyond foreseeable future alike too!</p>
