If you're in the market for a reliable and robust pushbutton suitable for industrial applications, the YW Series Mushroom Pushbutton might just be what you need. Designed with precision and durability in mind, this non-illuminated pushbutton offers a blend of practicality and resilience that meets a variety of technical requirements.
The pushbutton features a compact design with dimensions of 30 mm in width, 41.4 mm in height, and 66.3 mm in depth. Its front is rated IP65, ensuring excellent protection against dust and low-pressure water jets from any direction—ideal for harsh environments. The terminal section has an IP20 rating, providing basic protection against touch.
Engineered to perform under varying conditions, it operates efficiently within temperatures ranging from -20 to 55 degrees Celsius while being capable of storage between -40 to 85 degrees Celsius. This flexibility makes it suitable for diverse climatic conditions found across Australia.
The product is equipped with screw-type terminals which facilitate secure connections and ease of installation. It adheres to several international standards including cULus listing, CE marking, UKCA certification, and CCC certification—assuring compliance with global safety regulations.
With its vibration resistance spanning frequencies from 5-55 Hz and shock resistance up to 10 g/ms, this pushbutton can withstand demanding operational environments without compromising performance or reliability.
For electrical specifications, it boasts a rated insulation voltage of up to 600 V alongside an impressive insulation resistance of 100 MOhm. The contact configuration is set as normally open (1NO) using silver contact material known for its conductivity and longevity.

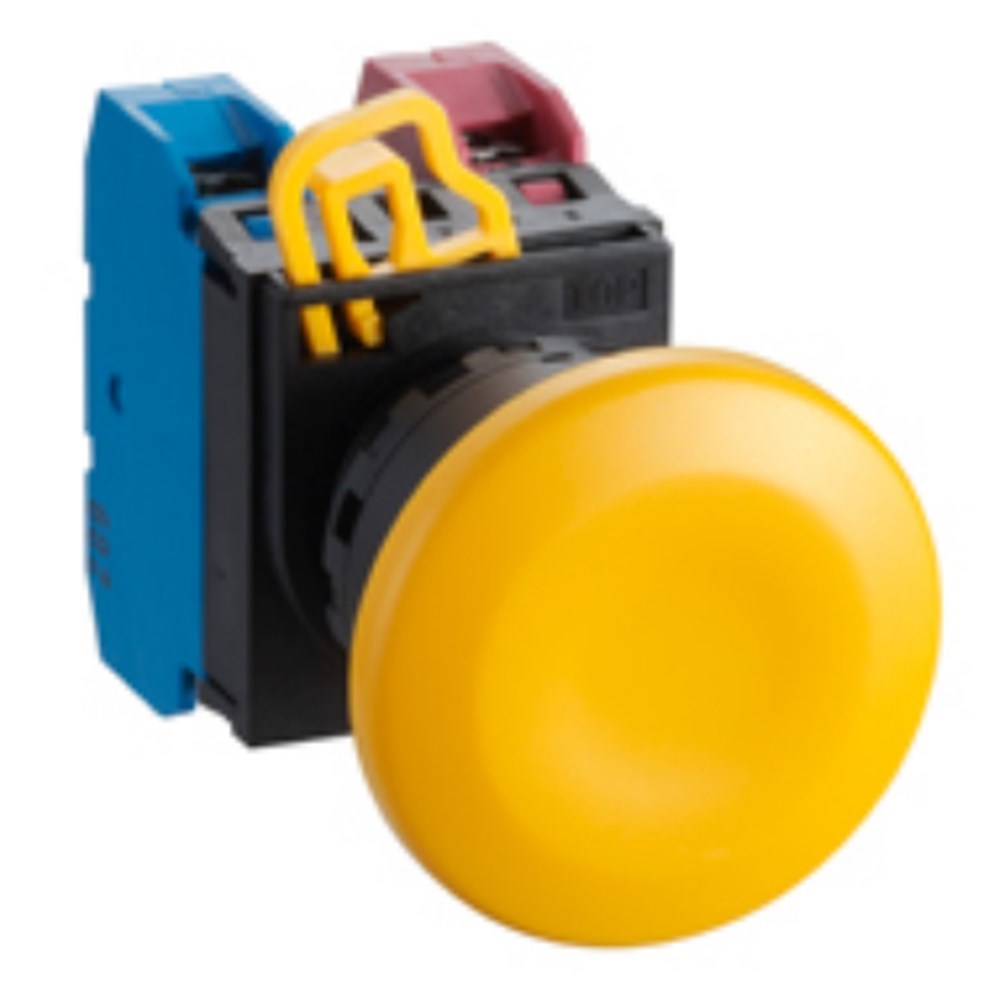

Designed with user convenience in mind, the actuator type is mushroom-shaped with a diameter of 40 mm—a size that ensures easy operation even when wearing gloves. The momentary function allows temporary engagement ideal for control panels requiring quick response actions.
Durability is further highlighted by its mechanical life expectancy: an astounding five million operations for single contact blocks and one million operations for double contact blocks make it exceptionally long-lasting compared to typical industry standards.
In terms of aesthetics yet functional design elements—the button comes in a vibrant yellow color housed within a sturdy plastic bezel material contributing not only towards visibility but also towards overall structural integrity during use over time at rated continuous current levels reaching up till ten amperes (10 A).
Whether you're looking at upgrading existing systems or implementing new installations altogether; considering these comprehensive attributes could help determine if this particular model aligns well enough according your specific project needs effectively meeting both practical usage demands along regulatory compliance requisites seamlessly integrated into one cohesive unit ready tackle challenges head-on confidently!
