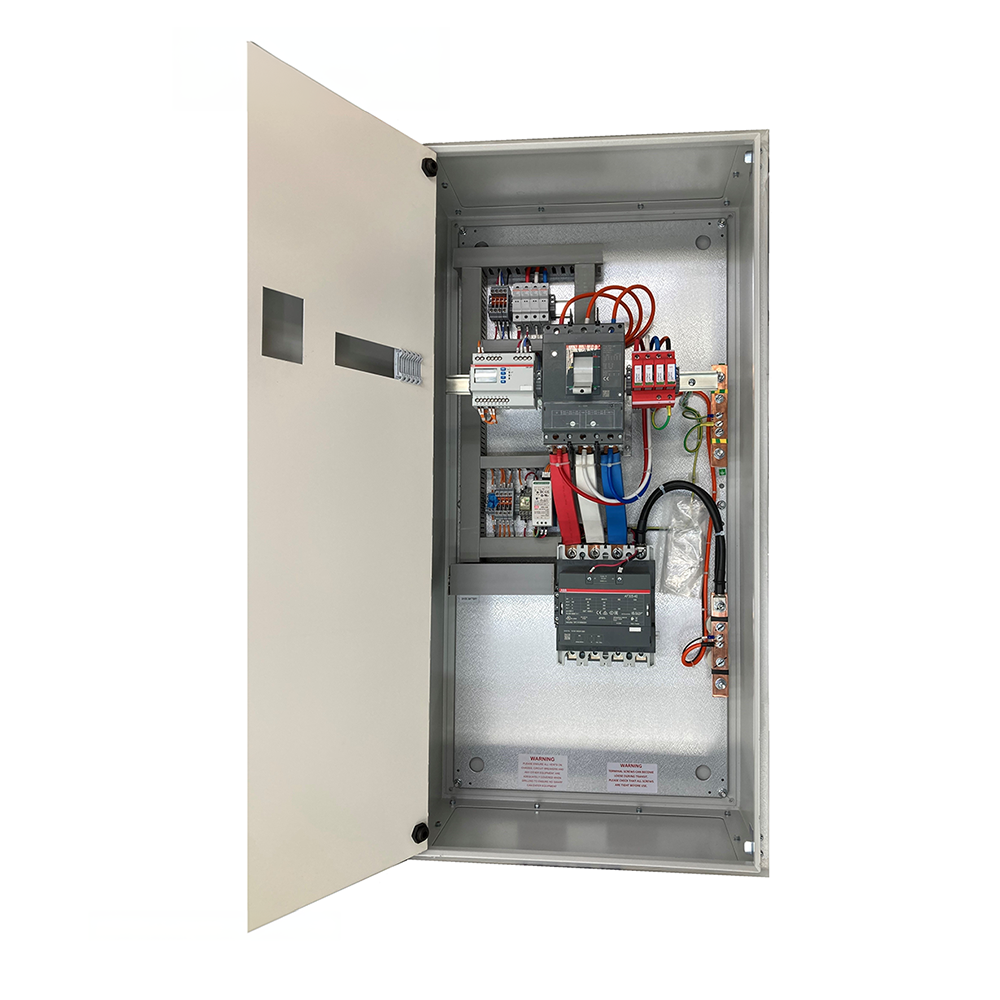

IPD GRID PROTECTION SYSTEM 230/400V 500A, 436KVA PVAGPS4P436

Product Code: PVAGPS4P436

The Grid Protection System is a reliable and efficient solution for safeguarding electrical grids. With a voltage rating of 230/400V and a current capacity of 500A, it ensures optimal performance. The system has a power rating of 436KVA, making it suitable for various applications. Equipped with the MCCB XT5H circuit breaker, which has a high current rating of 630A and can handle short-circuit currents up to 70kA, this system provides enhanced protection against overloads and faults. Additionally, the system is designed with an IP65 rating, ensuring its resistance to dust and water ingress. Its sleek grey colour adds a modern touch to any installation.

Technical Specifications

Brand IPD
Colour Grey, RAL7035
Degree of Protection IP65
Dimensions (mm) 1200H x 600W x 200D
Material Full powder coated mild steel
Maximum Power (kVA) 436
No. of Poles 4
Rated Current (A) 500
Rated Voltage AC (V) 230/400
