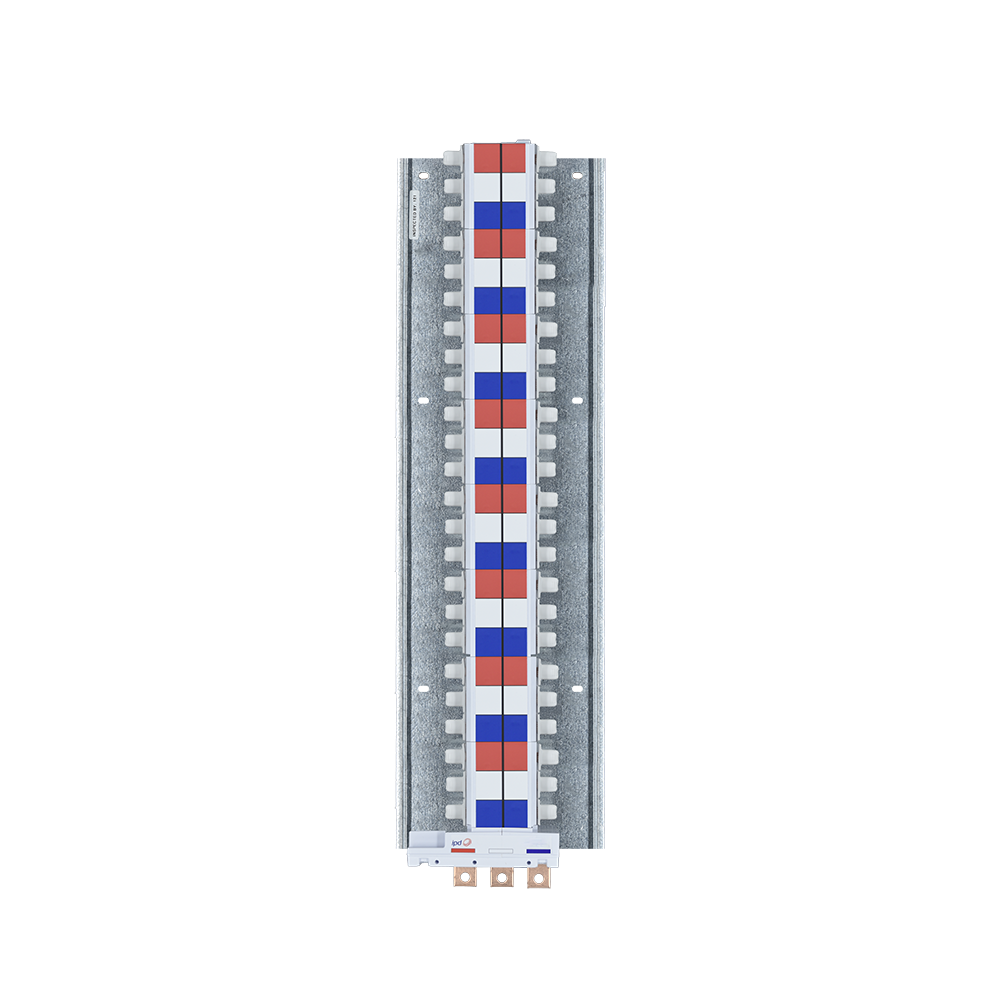

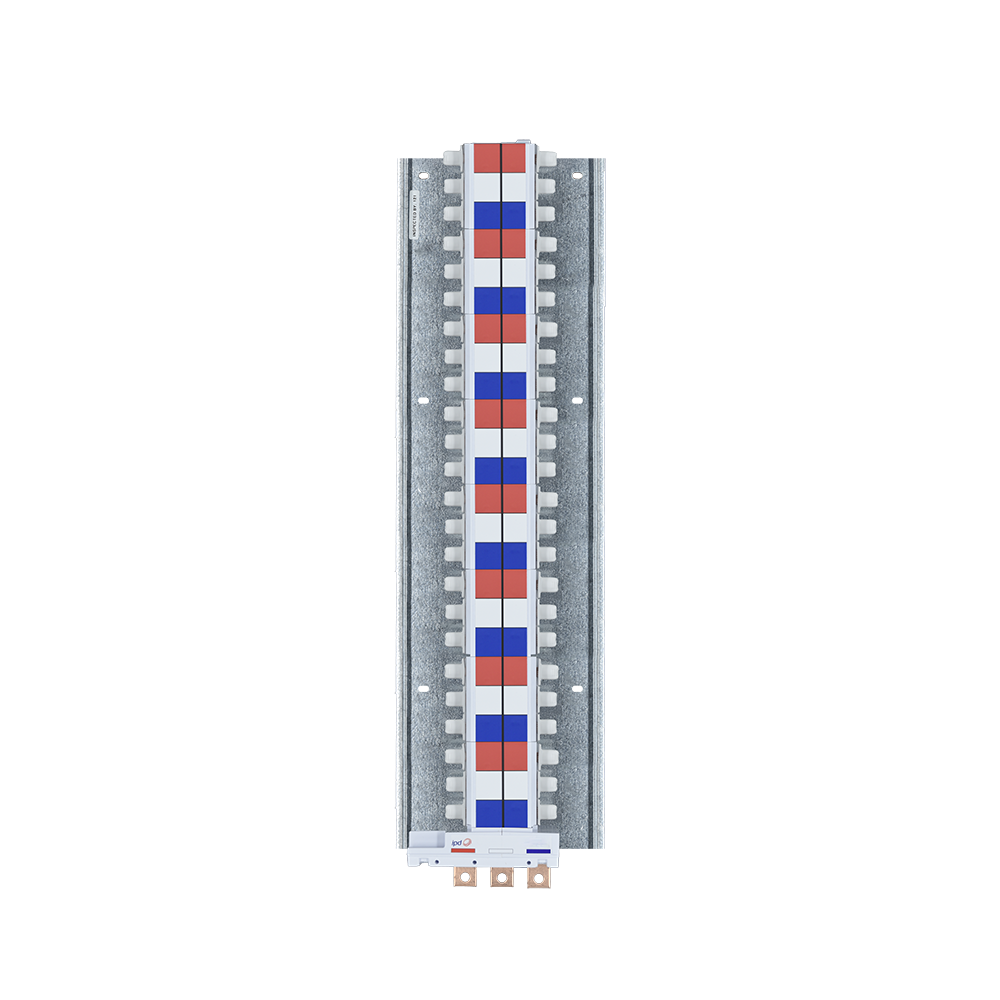

IPD ITH48A40B ENCAPSUL. CHASSIS 48P 400A BOTTOM FD 27mm PITCH

The Encapsulated Chassis is designed with a 48P configuration and can handle up to 400A of current. It features a bottom feed design with a pitch of 27mm. The chassis has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 3mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, which is suitable for S800 breakers in the IA range IPD.
