  • IPD IT43R48A25U ENCAP. CHASSIS 48P RWBN 250A UNIVERSAL FD

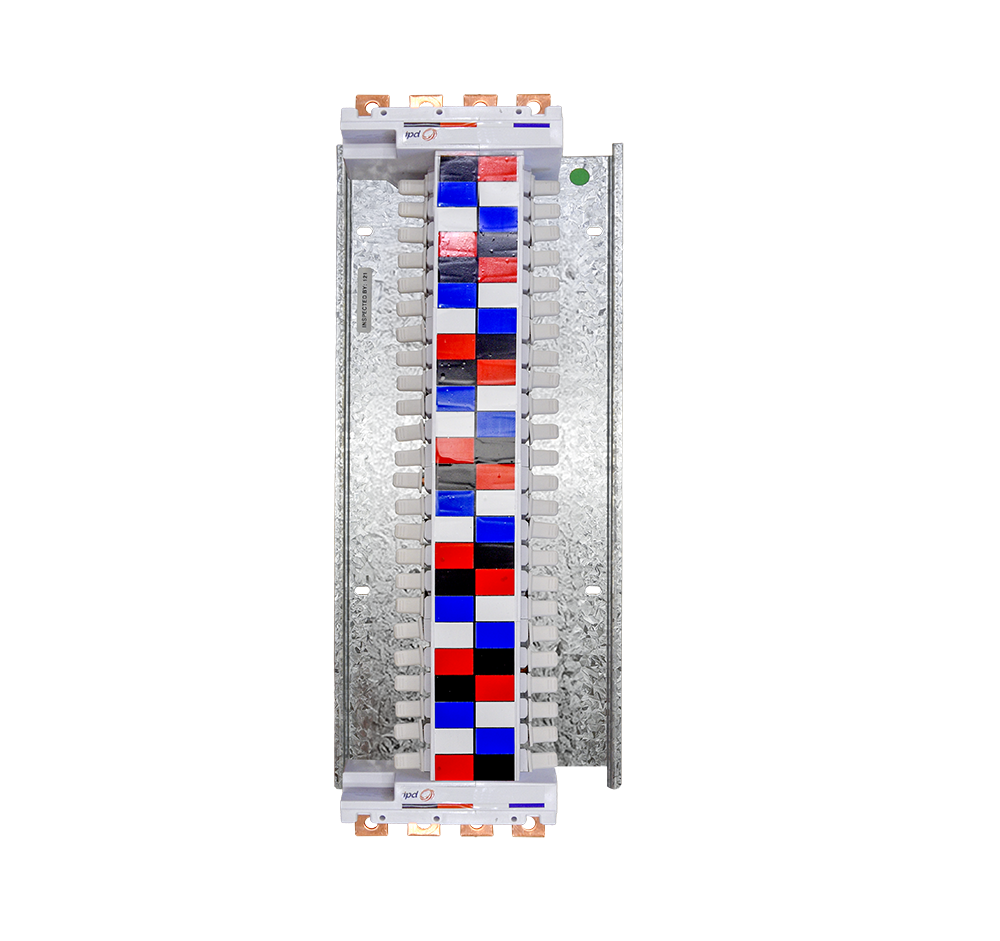

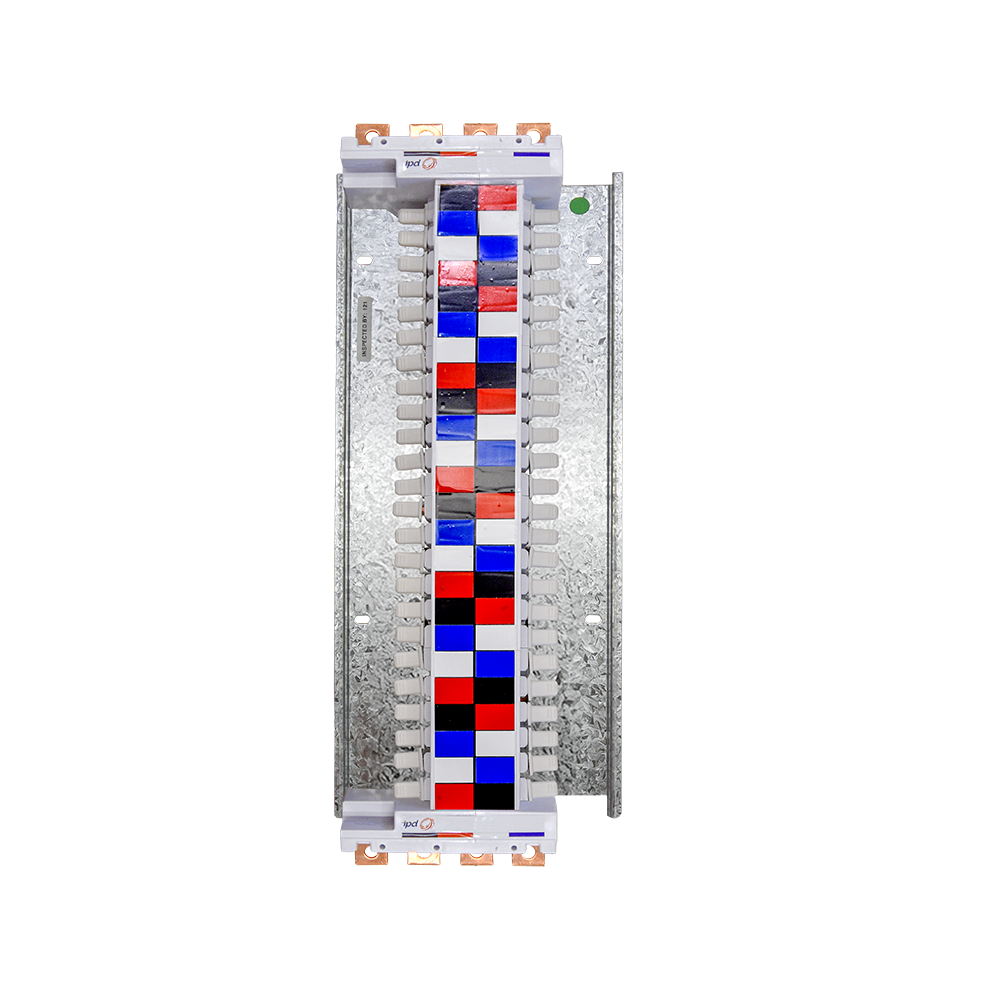

IPD IT43R48A25U ENCAP. CHASSIS 48P RWBN 250A UNIVERSAL FD

Product Code: IT43R48A25U

The Encapsulated Chassis 48P RWBN is a durable and versatile product designed for engineers. It has a universal feed withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The chassis features 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.

Technical Specifications

Brand IPD
Current Rating (A) 250
Feed Type Universal Feed
No. of Poles 48
Poles 48
Rated Current (A) 250
Type of Feed Universal Feed
Wiring Type RWBN
