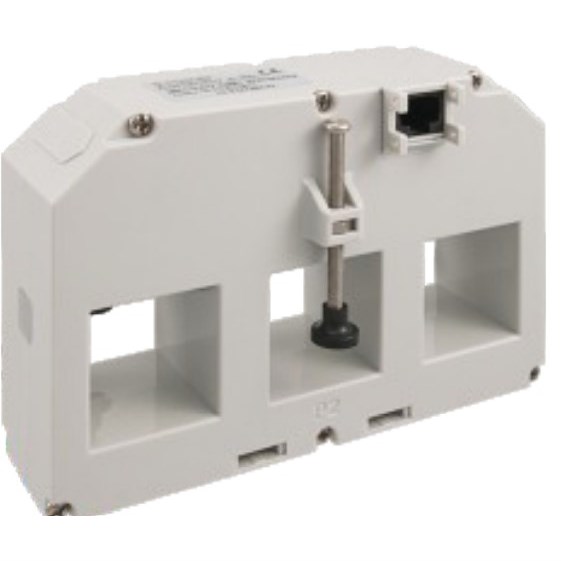

SELEC CT 3-IN-1 PLUG-N-WIRE 600A 31X31MM WINDOWS RJ45 CONNECTOR 330MV OUTPUT PWCT-31/31-600A

Product Code: PWCT-31/31-600A

  • RJ45 connector 330mV output Safe to leave transformers on load with output disconnected Foot, busbar or DIN rail mounting Fits standard moulded circuit breaker frame sizes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Aperture (mm) 31/31
Operational Temperature Range (°C) -25 to 40
Frequency Range (Hz) 47 to 63
Current Rating (A) 600
Storage Temperature Range (°C) -40 to 85
Rated Thermal Current - Ith (A) <60 In / 1 second
CT Output Voltage (mV) 330
Product Type CT
Brand SELEC
Accuracy Class Class 1 to IEC/ EN60044-8 & IEC/EN61869-2
Degree of Protection IP40 (Housing) , IP20 (Terminal)
Housing Material Self - extinguishing polycarbonate
Relative Humidity &#8804; 85% non-condensing
