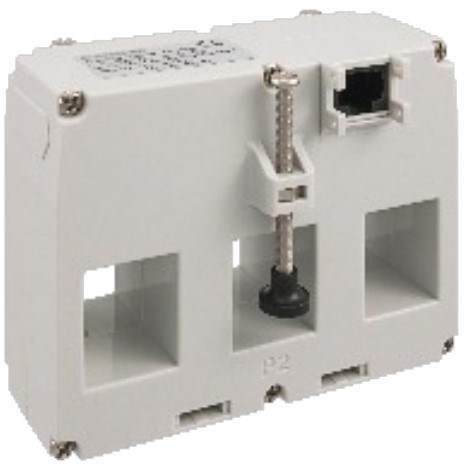

SELEC CT 3-IN-1 PLUG-N-WIRE 60A 21X25MM WINDOWS RJ45 CONNECTOR 330MV OUTPUT PWCT-21/25-60A

Product Code: PWCT-21/25-60A

  • RJ45 connector 330mV output Safe to leave transformers on load with output disconnected Foot, busbar or DIN rail mounting Fits standard moulded circuit breaker frame sizes
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type CT
Brand SELEC
Accuracy Class Class 1 to IEC/ EN60044-8 & IEC/EN61869-2
Degree of Protection IP40 (Housing) , IP20 (Terminal)
Housing Material Self - extinguishing polycarbonate
Relative Humidity ≤ 85% non-condensing

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
