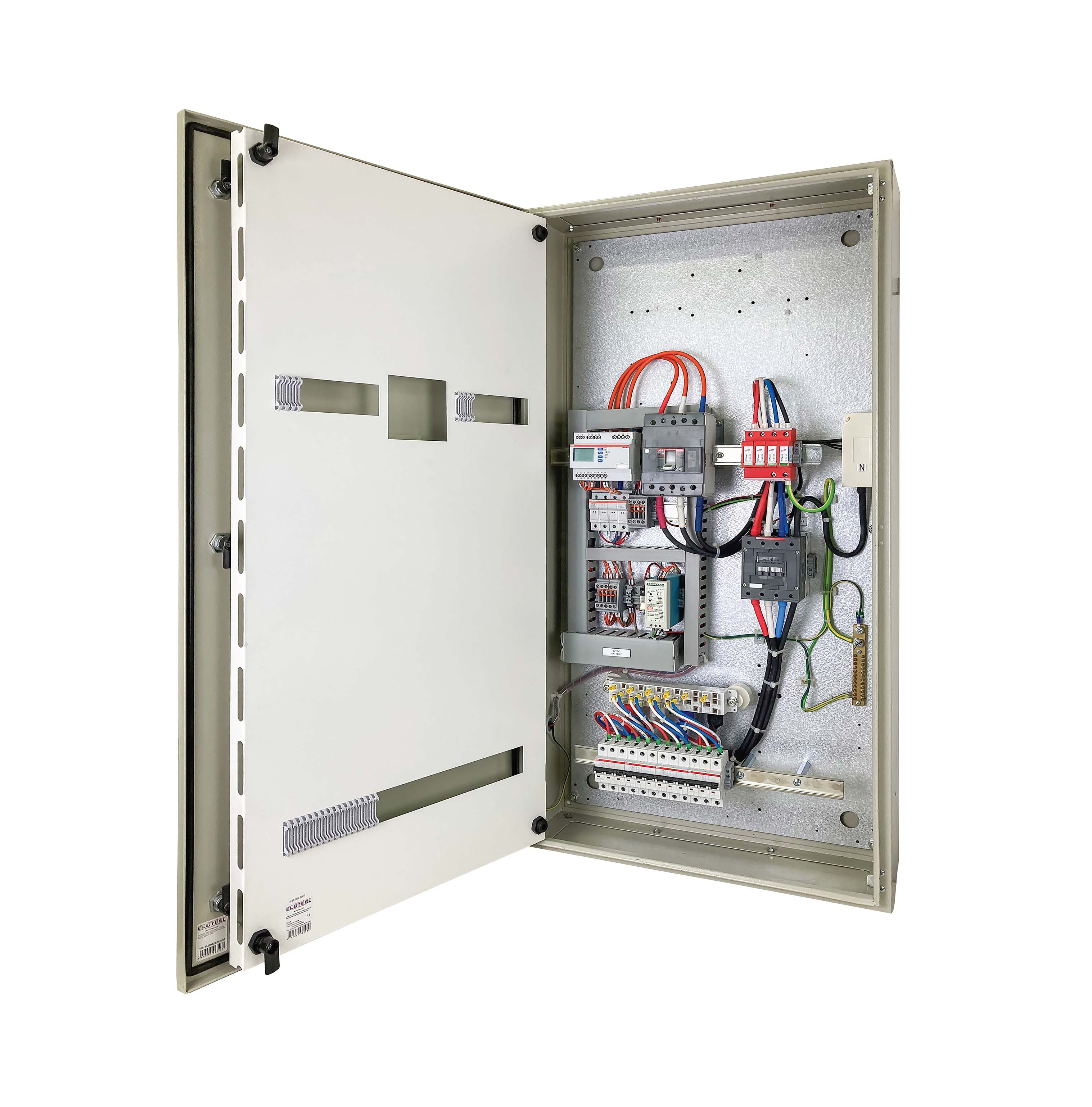

IPD GRID PROTECTION SYSTEM 4P 230/400V 100A, 69KVA PVAGPS4P69AC18

Product Code: PVAGPS4P69AC18

The Grid Protection System is a 4P system with a voltage rating of 230/400V and a current rating of 100A. It has a power rating of 69kVA. The system includes an MCCB XT4H with a current rating of 100A and a breaking capacity of 70kA. It is mounted on an 18P chassis with dimensions measuring 1200 x 600 x 200 mm.

Technical Specifications

Remove Yes
Brand IPD
Colour Grey, RAL7035
Degree of Protection IP65
Dimensions (mm) 1200H x 600W x 200D
Material Full powder coated mild steel
Maximum Power (kVA) 69
No. of Poles 4
Rated Current (A) 100
Rated Voltage AC (V) 230/400
