Melamine Terminal Blocks

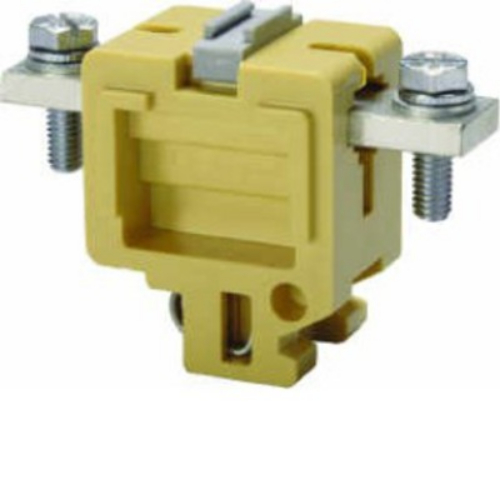

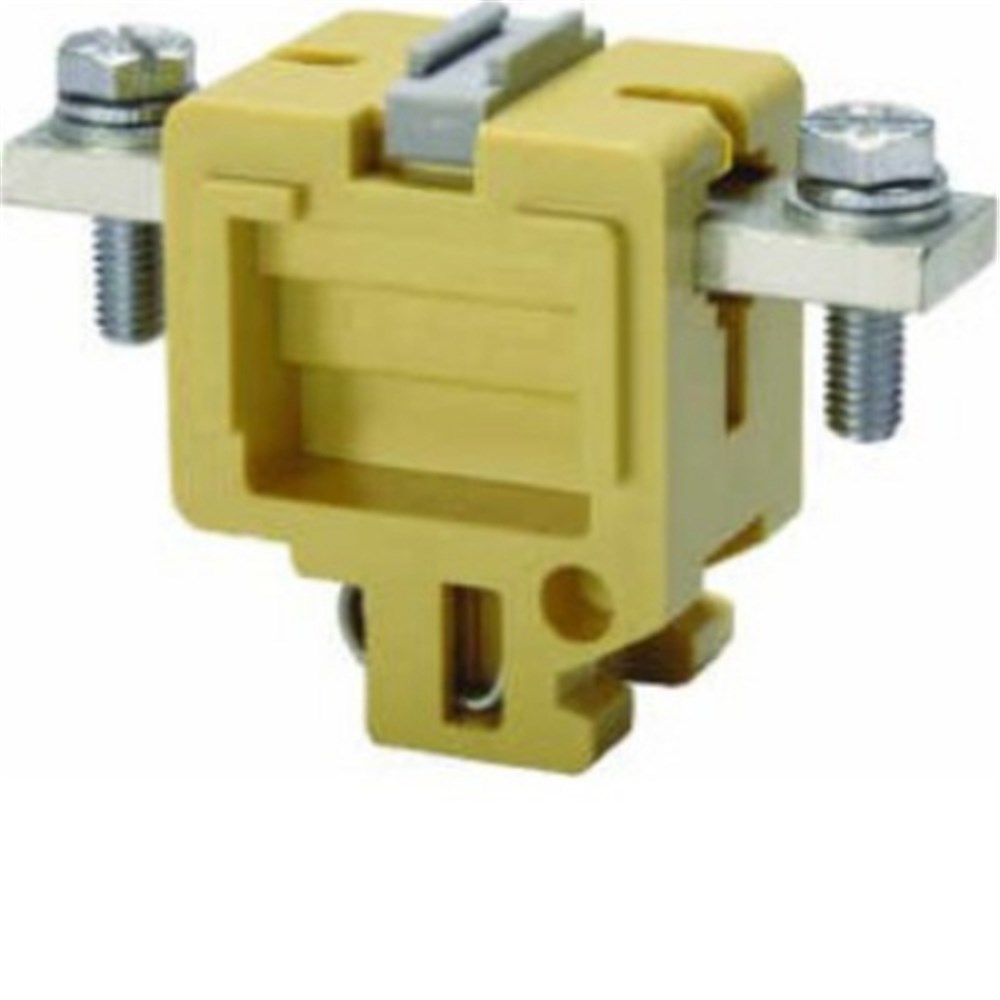

CONNECTWELL CTS70L MELAMINE TERMINAL BLOCK BUSBAR LUG CONNECTION 35 - 70mm² 1000V/192A

Product Code: CTS70L

The Melamine terminal block busbar lug connection is designed for conductor cross sections of 35 - 70mm². It has dimensions of 92mm in length, 40mm in width, and 52mm in height. The terminal block is coloured beige and can handle a voltage of up to 1000V and a current of up to 192A. It can be mounted on a DIN 32 rail.

Technical Specifications

Colour Beige
Screw Size M8
Brand CONNECTWELL
Conductor Cross Section - Stranded (mm²) 35 - 70
Mounting Type DIN Rail
Rated Current (A) 192
Rated Voltage (V) 1000
Tightening Torque (Nm) 6
Dimensions (mm) 92L x 40W x 52H
