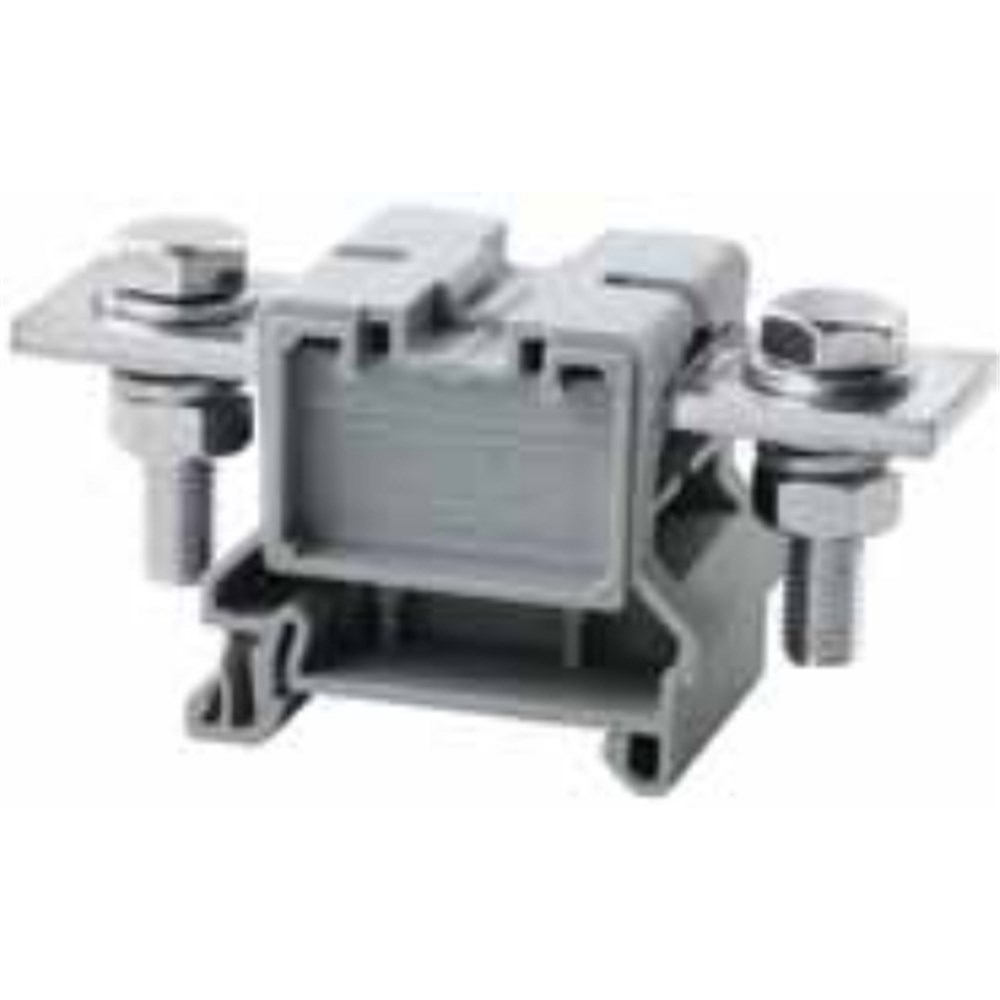

CONNECTWELL CBB70 POWER TERMINAL BLOCK LUG CONNECTION 6-70mm² 1000V/192A

Product Code: CBB70

Power terminal block with lug connection for stranded conductors ranging from 6mm² to 70mm². It has dimensions of 92mm (L) x 38mm (W) x 47.5mm (H) and comes in a grey colour. The terminal block is capable of handling a feed through of 1000V/192A. It also has the possibility for M8 size bolt mounting on both DIN 35 and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 6 - 70
Dimensions (mm) 92L x 38W x 47.5H
Mounting Type DIN Rail
Rated Current (A) 192
Rated Voltage (V) 1000
Screw Size M8
Tightening Torque (Nm) 6
