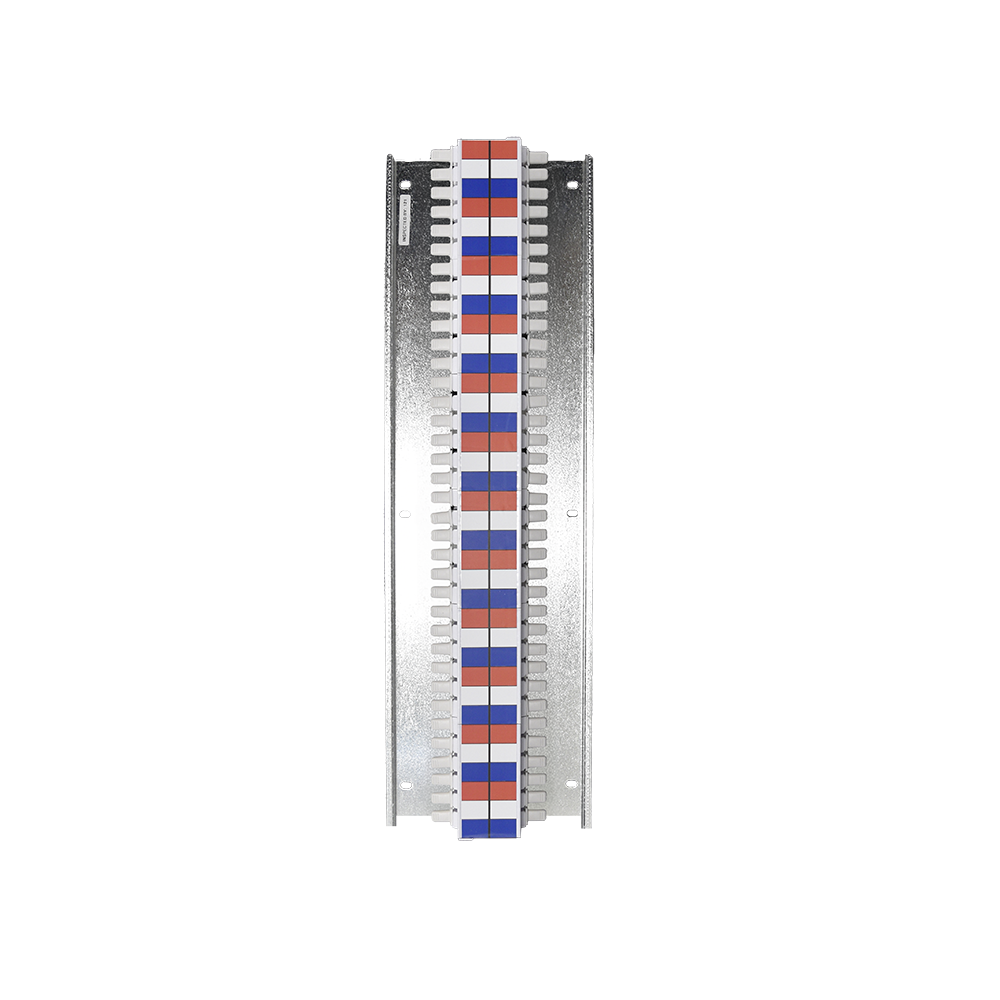

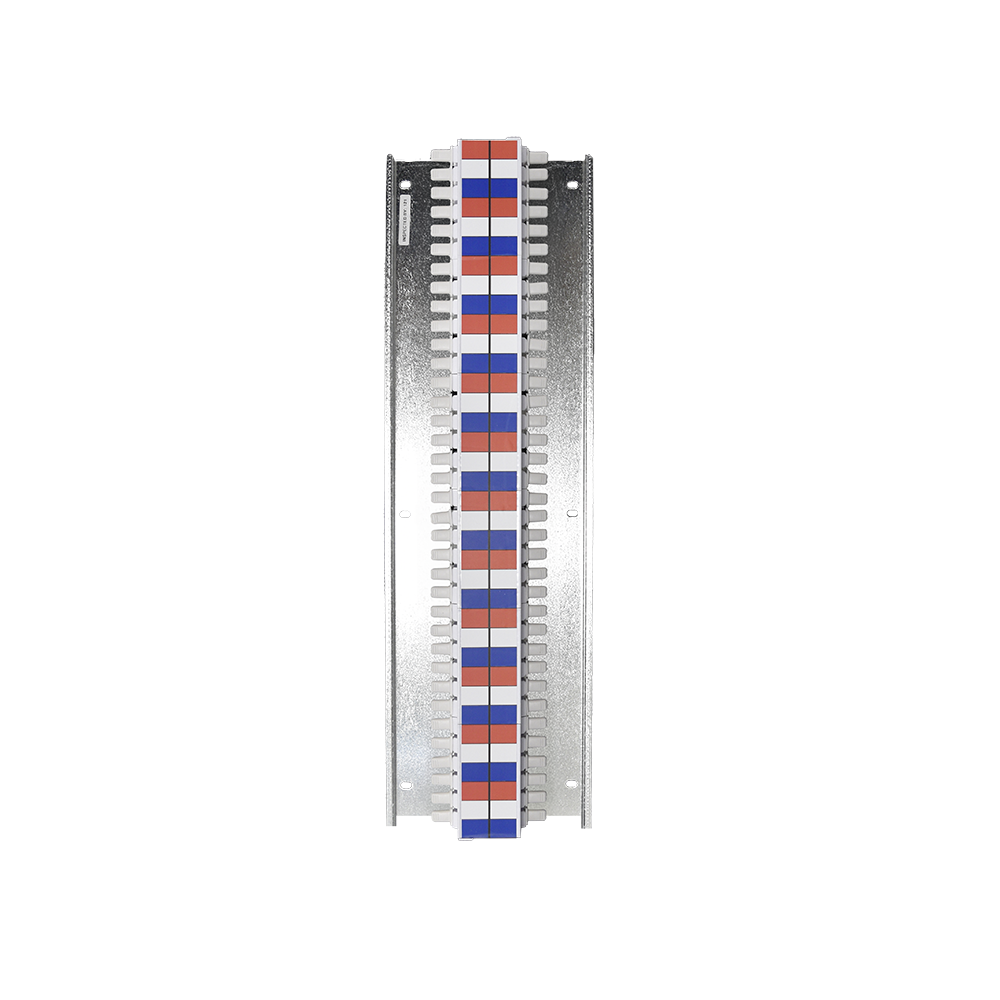

IPD IT72A25N ENCAPSUL. CHASSIS 72P 250A TEE-OFF FD 18mm PITCH

The Encapsulated Chassis 72P is designed for use with S200 breakers in the IA range. It has a tee-off feed with an 18mm pitch and can withstand ratings of Icw 25kA/0.1s and 10kA/1s, as well as Icc 30kA. The chassis features 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It is coated with duravin SCI-TV for added durability.
