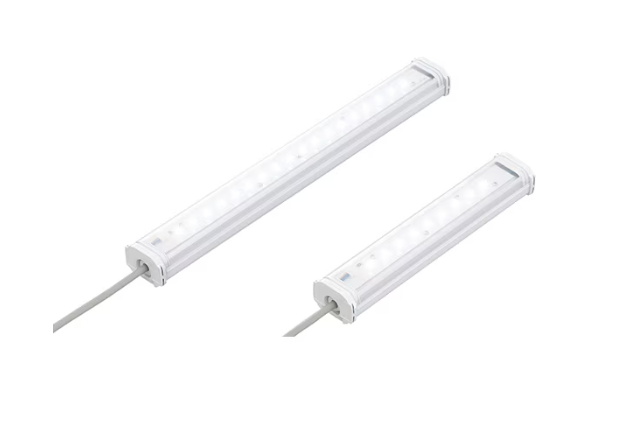

IDEC 830mm, COOL WHITE 100-240V AC, 1m LED ILLUMINATION UNITS LF2B-E3PATHWW21M

Product Code: LF2B-E3PATHWW21M

The IDEC LF2B-E3PATHWW21M is an 830mm LED illumination unit designed for efficient lighting in industrial environments. Its cool white LEDs provide bright and clear illumination, enhancing the visibility of target objects. The unit's one-step installation process allows for quick setup in narrow spaces. It boasts an IP65 rating, ensuring waterproof and dustproof operation, making it suitable for use in wet locations.

Technical Specifications

Resistance to Shock (m/s²) 300
Resistance to Vibrations 5 to 55Hz
Voltage Range AC (V) 100-240
Brand IDEC
Illumination Colour Cool White
Cable Length (m) 1
Cover Colour Clear
Degree of Protection IP65
Dielectrical Strength (kV) 2
Dimensions (mm) 40W x 29H x 830D
Minimum Electrical Life 40000 hrs
Operating Humidity 45 to 85%
Operational Temperature Range (°C) -30 to 55
Rated Power (W) 12.2
