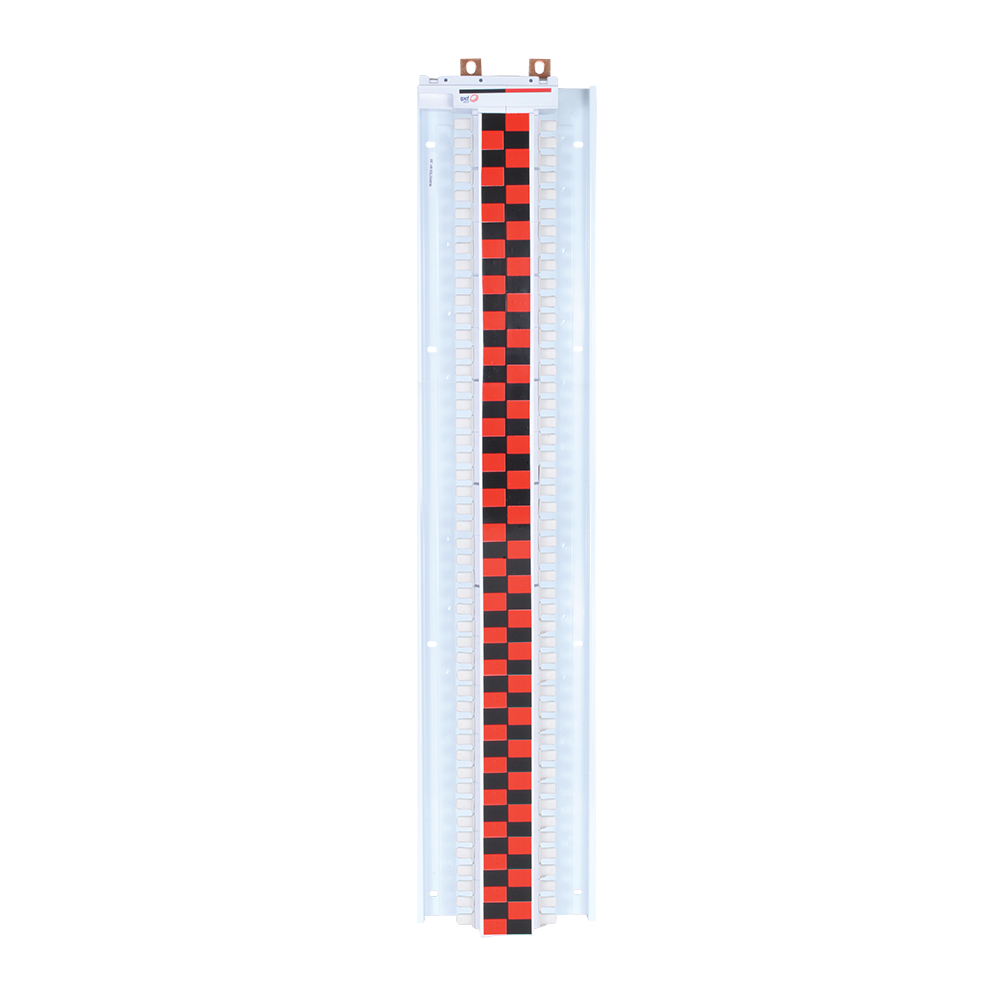

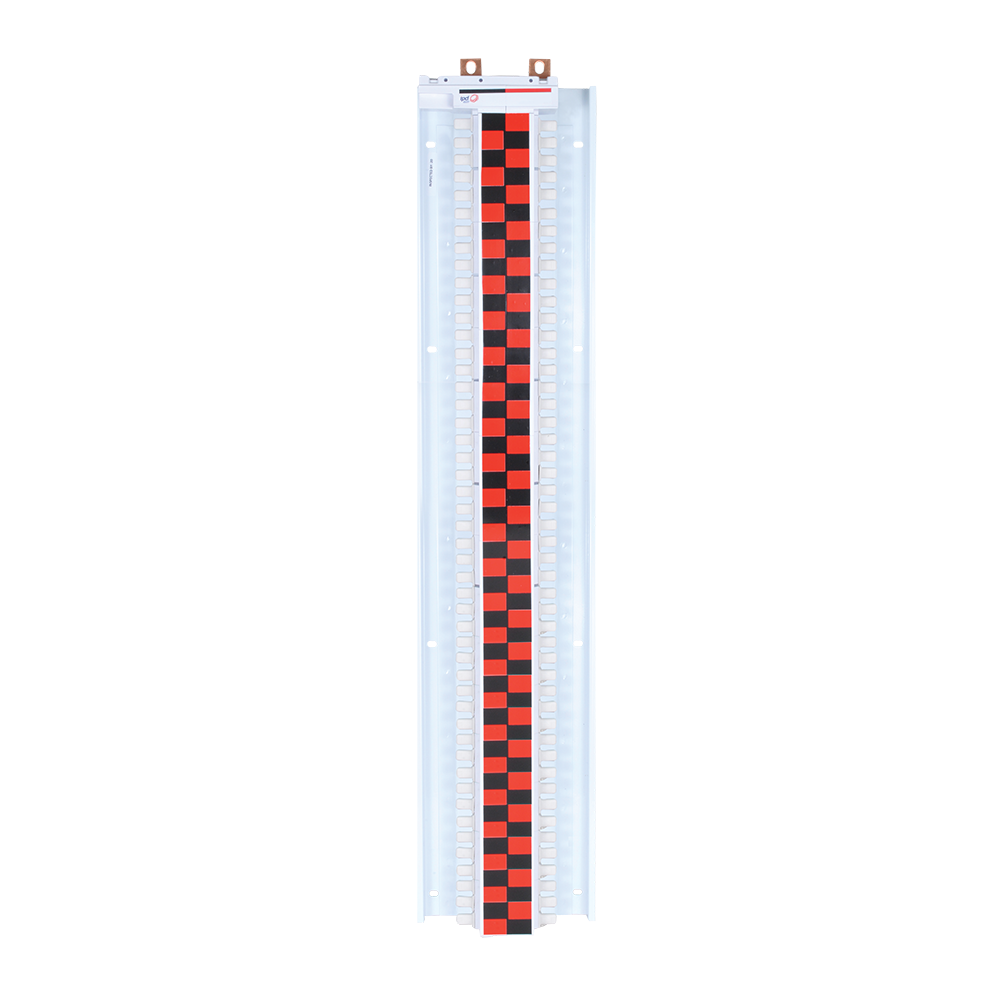

IPD ITDCR84A25T ENCAPSULATED DC CHASSIS 84P 250A TOP FEED

The Encapsulated DC chassis 84P is designed for a maximum current of 250A. It has a top feed configuration and a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 2mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, making it suitable for use with S200 breakers in the IA range IPD.
