Specifications

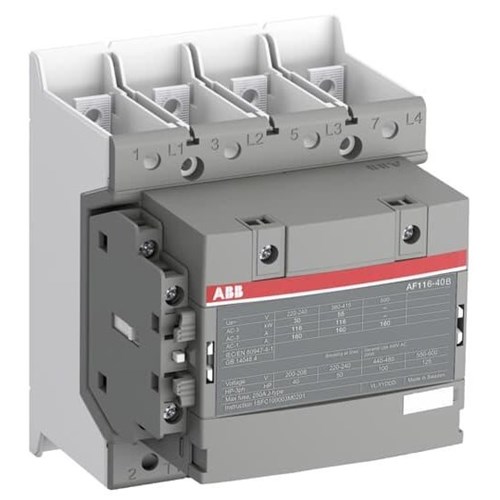

Product Type	4-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	1NO + 1NC
Rated Control Supply Voltage (Us)	50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V
Rated Operational Current AC-1 <= 690V (Ie)	160 A
Rated Operational Current AC-3 400V (Ie)	116 A
Rated Operational Power AC-3 400V (Pe)	55 kW
Rated Frequency	50 / 60 Hz
No. of Poles	4P
Depth	128 mm
Height	150 mm
Weight	1.95 kg
Width	120 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
