Specifications

Product Type	4-Pole Contactors
Brand	ABB
No. of Auxiliary Contacts	0NO + 0NC
Rated Control Supply Voltage (Us)	50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V
Rated Operational Current AC-1 <= 690V (Ie)	30 A
Rated Frequency	50 / 60 Hz
No. of Poles	4P
Depth	77 mm
Height	86 mm
Weight	0.27 kg
Width	45 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 508, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1

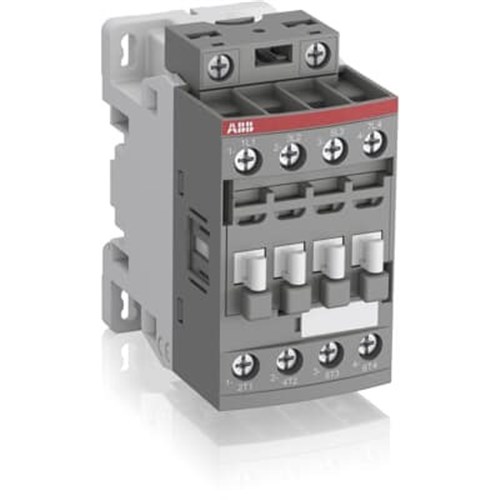

ABB CONTACTOR 30A AC1 18A AC3 4P 4NO 100-250VACDC COIL FOR LAMP STARTING AF164000L13
