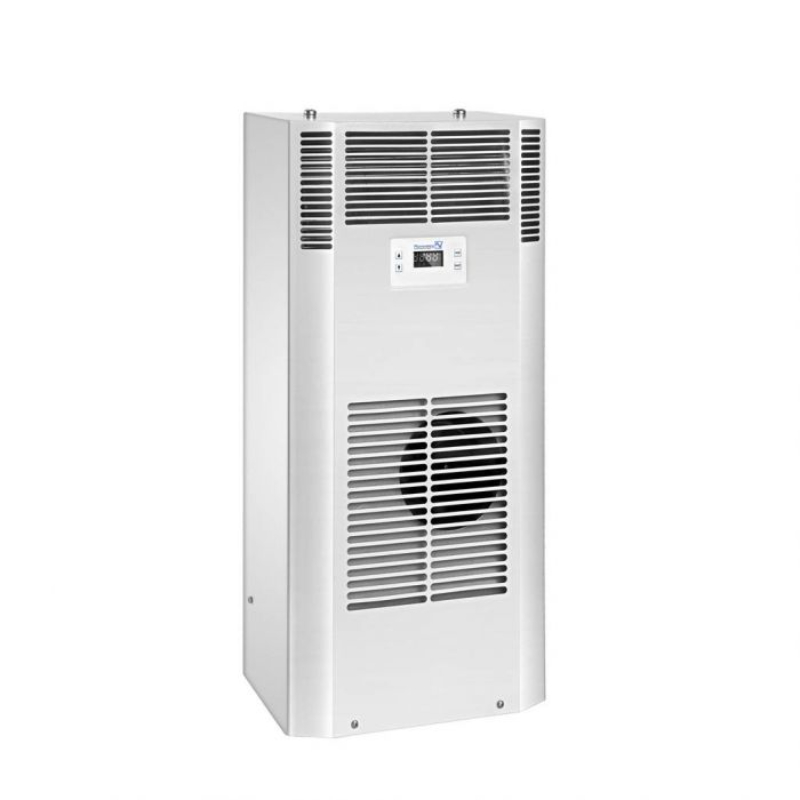

PFANNENBERG DTS 8031E 230V CSC 7035 CM, 500W, IP54, WALL MOUNTED COOLING UNIT 13048090336

Product Code: 13048090336

Explore the Pfannenberg DTS Series Cooling Units, designed for efficient thermal management in industrial environments. These units offer a cooling capacity ranging from 300 to 2500 W according to EN 14511 (A35/A35) standards, ensuring optimal performance. They are equipped with an integrated condensate management system and can operate on a rated voltage of either 230 VAC or 400 VAC with a tolerance of ±10%. The DTS series boasts impressive unimpeded airflow rates, with internal airflow between 224 and 1520 m³/h and external airflow up to 1520 m³/h, facilitating effective heat dissipation. These cooling units maintain precise temperature control within a range of +25°C to +45°C. Built for durability and reliability in demanding conditions, they come with an IP54 rating, signifying protection against dust and water splashes. The sleek design is finished in RAL 7035 color, blending seamlessly into various industrial settings. Trust Pfannenberg's expertise in thermal management to keep your equipment cool and operational.

Technical Specifications

Colour RAL7035
Housing Material Galvanised sheet steel
Maximum Temperature (°C) 55
Minimum Temperature (°C) 15
Brand PFANNENBERG
Series DTS
Ambient Temperature Range (°C) +15 to +55
Mounting Type Door/Side
Cooling Capacity (W) 500
Cover Steel powder coated
Current Consumption (A) 1.7
Noise Level (dBA) ≤63
Power Consumption (W) 289
Rated Frequency (Hz) 50/60
Rated Maximum Operational Voltage AC (V) 253
Rated Minimum Operational Voltage AC (V) 207
Rated Operational Power (kW) 0.5
Rated Power (W) 500
Rated Voltage AC (V) 230± 10%
Starting Current (A) 3.5
Terminal Type Spring-type
Dimensions (mm) 325W X 670H X 200D
Unimpeded Airflow - External 590
Unimpeded Airflow - Internal 275
Degree of Protection IP54
