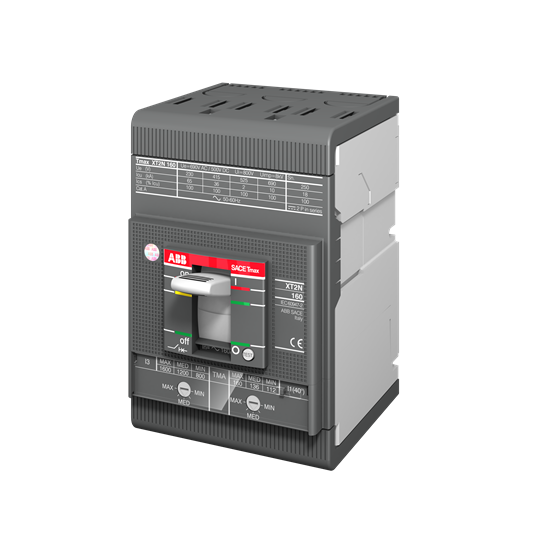

When it comes to selecting the right Molded Case Circuit Breaker (MCCB) for industrial and commercial applications, the technical specifications are paramount. This MCCB is designed with precision to meet demanding electrical requirements, ensuring safety and efficiency in your operations.
With a rated current of 160 A, this MCCB efficiently handles substantial electrical loads. It boasts a rated impulse withstand voltage of 8 kV and an impressive rated insulation voltage of 1000 V, providing robust protection against electrical surges and ensuring long-term reliability.
The device operates effectively at both AC and DC voltages, specifically rated at 690 VAC and 500 VDC. Its thermal magnetic (TM) release type ensures accurate tripping characteristics under overload or short-circuit conditions, further safeguarded by the TMA trip unit.
Power loss is minimized at just 16.15 W, contributing to energy efficiency in your installations. The breaker features three poles and offers a notable breaking capacity of up to 36 kA—ideal for handling potential fault currents without compromising system integrity.
Installation flexibility is enhanced with its front connection type and bolt terminal configuration, facilitating straightforward integration into existing systems. The MCCB's compact design measures only 90 mm in width while maintaining a degree of protection classified as IP20—adequate for indoor environments where exposure to dust or water is minimal.
Compliant with IEC60947-2 standards, this product meets international safety regulations—providing peace of mind regarding quality assurance. Weighing in at just 1.4 kg makes it relatively lightweight for ease of handling during installation or maintenance procedures.
Operating across standard frequencies of both 50 Hz and 60 Hz adds versatility in various global settings. Designed for compatibility with XT2N systems enhances its adaptability within different setups.
For those concerned about circuit resilience, the MCCB accommodates a rated short circuit current range between 800-1600 A while allowing current settings from 112-160 A—offering customizable protection levels according to specific needs.
Moreover, its main circuit connecting capacity ranges from 32.5 sq-mm up to an ample size of 100 sq-mm—ensuring adequate connectivity options based on wire gauge requirements within your infrastructure setup.
This comprehensive set of features makes this MCCB not only versatile but also reliable—a fitting choice for professionals seeking dependable performance coupled with compliance across diverse applications.
