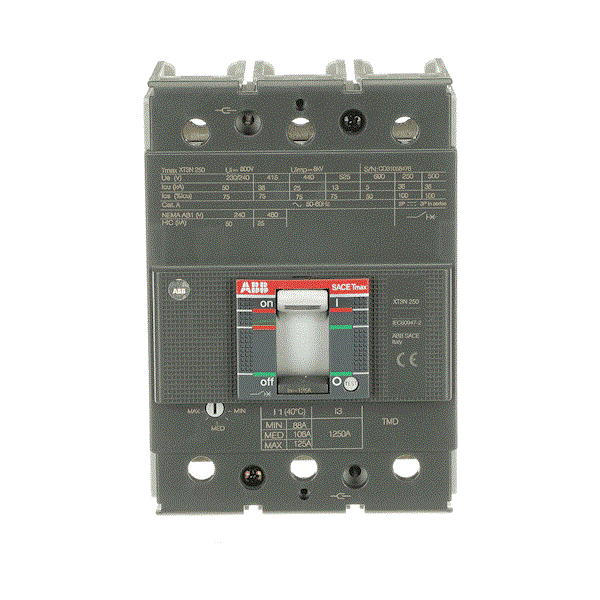

<p>When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial application, understanding the technical specifications is crucial to ensure compatibility and safety. This MCCB offers robust features tailored to meet demanding electrical requirements.</p><p>With a rated current of 125 A, this MCCB is designed to handle substantial loads efficiently. Its rated impulse withstand voltage of 8 kV ensures resilience against transient overvoltages, while the rated insulation voltage of 800 V provides reliable insulation between conductive parts. The device operates effectively across both AC and DC systems with a rated voltage of 690/500 VAC/VDC.</p><p>The thermal magnetic (TM) release type and thermal magnetic trip unit (TMD) offer dependable protection by combining temperature-sensitive elements with electromagnetic forces for precise operation under overload conditions. With power loss at just 6.6 W, energy efficiency is maintained without compromising performance.</p><p>This MCCB features three poles, making it suitable for three-phase applications. It boasts a breaking capacity of 36 kA, ensuring the ability to interrupt high fault currents safely. The front connection type facilitates straightforward installation and maintenance.</p><p>Rated at IP20, this product offers basic protection against solid objects greater than 12 mm in diameter but should be installed in an appropriate enclosure when used in environments where more rigorous ingress protection is required. The bolt terminal type ensures secure connections that can accommodate conductor sizes ranging from 85-192 sq-mm.</p><p>Measuring at a width of 105 mm and weighing just 1.7 kg, this MCCB balances compact design with ease of handling during installation or replacement processes. It adheres to IEC60947-2 standards, guaranteeing compliance with international safety and performance benchmarks.</p><p>Operating on frequencies between 50/60 Hz, this breaker integrates seamlessly into various electrical systems worldwide. It&#39;s particularly compatible with XT3N devices, enhancing its versatility within different setups.</p><p>For short circuit scenarios, the breaker supports up to a remarkable rated short circuit current of 1250 A while offering an adjustable current setting range from 87.5-125 A for customized protection levels according to specific load demands.</p><p>In summary, this MCCB stands out as a reliable choice for professionals seeking efficient circuit protection solutions in industrial settings due to its comprehensive feature set tailored for high-performance applications.</p>
